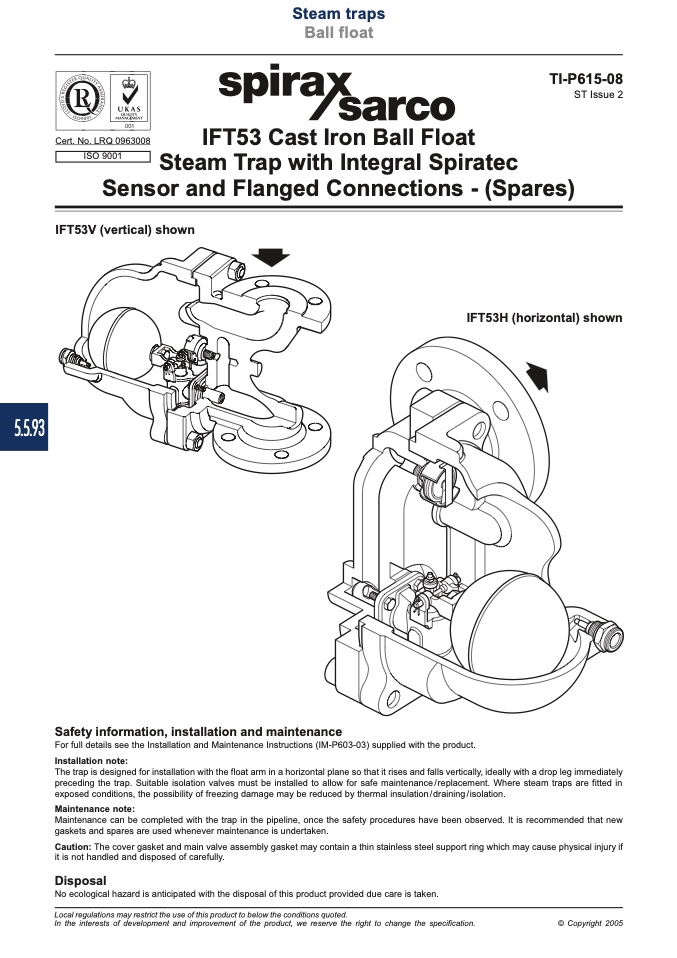

IFT53V (vertical) shown

Safety information, installation and maintenance

Steam traps

Ball float

IFT53 Cast Iron Ball Float

Steam Trap with Integral Spiratec

Sensor and Flanged Connections - (Spares)

Cert. No. LRQ 0963008

ISO 9001

For full details see the Installation and Maintenance Instructions (IM-P603-03) supplied with the product.

Installation note:

The trap is designed for installation with the float arm in a horizontal plane so that it rises and falls vertically, ideally with a drop leg immediately

preceding the trap. Suitable isolation valves must be installed to allow for safe maintenance/replacement. Where steam traps are fitted in

exposed conditions, the possibility of freezing damage may be reduced by thermal insulation/draining/isolation.

Maintenance note:

Maintenance can be completed with the trap in the pipeline, once the safety procedures have been observed. It is recommended that new

gaskets and spares are used whenever maintenance is undertaken.

Caution: The cover gasket and main valve assembly gasket may contain a thin stainless steel support ring which may cause physical injury if

it is not handled and disposed of carefully.

Disposal

No ecological hazard is anticipated with the disposal of this product provided due care is taken.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2005

IFT53H (horizontal) shown

TI-P615-08

ST Issue 2
