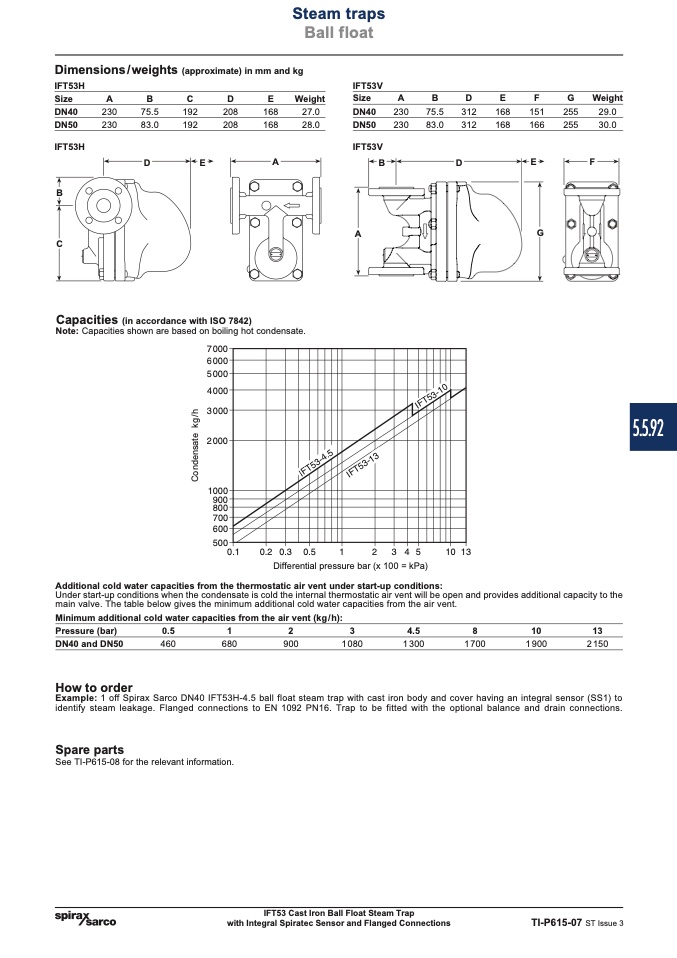

Steam traps

Ball float

Dimensions/weights (approximate) in mm and kg

IFT53H

Size

A

B

C

D

E

Weight

DN40

230

75.5

192

208

168

27.0

DN50

230

83.0

192

208

168

28.0

IFT53V

Size

A

B

D

E

F

G

Weight

DN40

230

75.5

312

168

151

255

29.0

DN50

230

83.0

312

168

166

255

30.0

IFT53H

B

C

Capacities (in accordance with ISO 7842)

Note: Capacities shown are based on boiling hot condensate.

�� ������

�� ������

�� ������

�� ������

�� ������

�� ������

��������

������

������

������

IFT53V

D

E

A

B

D

E

F

A

G

������

������

������

�����������

�

������

��

�

�

������

��������

Differential pressure bar (x 100 = kPa)

Additional cold water capacities from the thermostatic air vent under start-up conditions:

Under start-up conditions when the condensate is cold the internal thermostatic air vent will be open and provides additional capacity to the

main valve. The table below gives the minimum additional cold water capacities from the air vent.

Minimum additional cold water capacities from the air vent (kg/h):

Pressure (bar)

0.5

1

2

3

4.5

8

10

13

DN40 and DN50

460

680

900

1080

1300

1700

1900

2150

How to order

Example: 1 off Spirax Sarco DN40 IFT53H-4.5 ball float steam trap with cast iron body and cover having an integral sensor (SS1) to

identify steam leakage. Flanged connections to EN 1092 PN16. Trap to be fitted with the optional balance and drain connections.

Spare parts

See TI-P615-08 for the relevant information.

IFT53 Cast Iron Ball Float Steam Trap

with Integral Spiratec Sensor and Flanged Connections

TI-P615-07 ST Issue 3
