Spare parts

Steam traps

Ball float

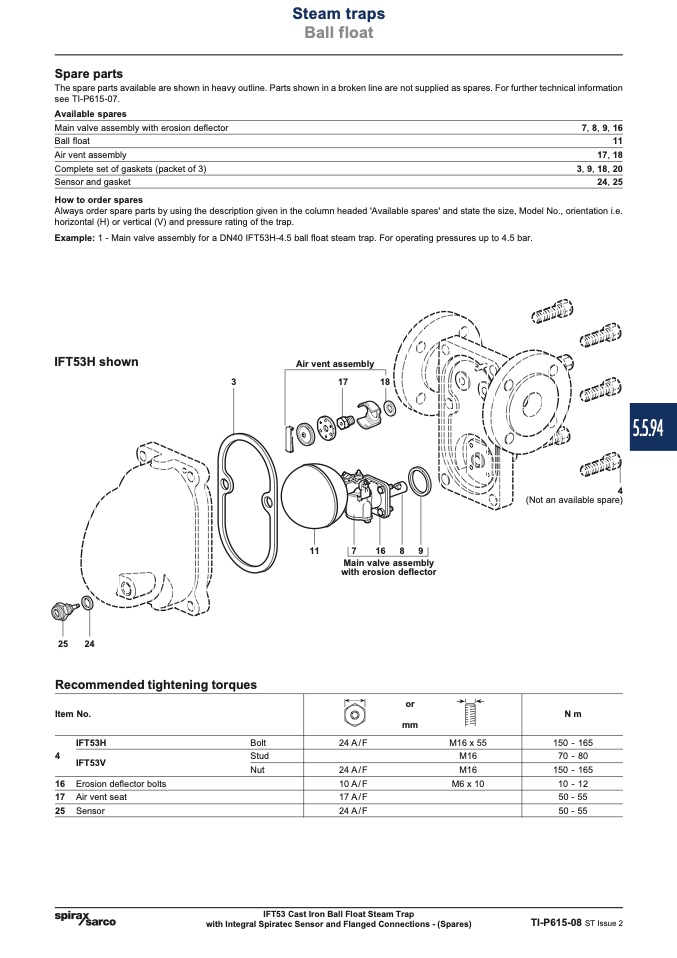

The spare parts available are shown in heavy outline. Parts shown in a broken line are not supplied as spares. For further technical information

see TI-P615-07.

Available spares

Main valve assembly with erosion deflector

Ball float

Air vent assembly

Complete set of gaskets (packet of 3)

Sensor and gasket

How to order spares

7, 8, 9, 16

11

17, 18

3, 9, 18, 20

24, 25

Always order spare parts by using the description given in the column headed 'Available spares' and state the size, Model No., orientation i.e.

horizontal (H) or vertical (V) and pressure rating of the trap.

Example: 1 - Main valve assembly for a DN40 IFT53H-4.5 ball float steam trap. For operating pressures up to 4.5 bar.

IFT53H shown

Air vent assembly

3

1

7

18

25 24

Recommended tightening torques

Item No.

11

7

16 8 9

Main valve assembly

with erosion deflector

or

mm

24A/F

M16x55

M16

24A/F

M16

10A/F

M6 x 10

17A/F

24A/F

N m

150 - 165

70 - 80

150 - 165

10 - 12

50 - 55

50 - 55

TI-P615-08 ST Issue 2

IFT53H

4

IFT53V

16 Erosion deflector bolts

17 Air vent seat

25 Sensor

Bolt

Stud

Nut

IFT53 Cast Iron Ball Float Steam Trap

with Integral Spiratec Sensor and Flanged Connections - (Spares)

5.5.94

4

(Not an available spare)
