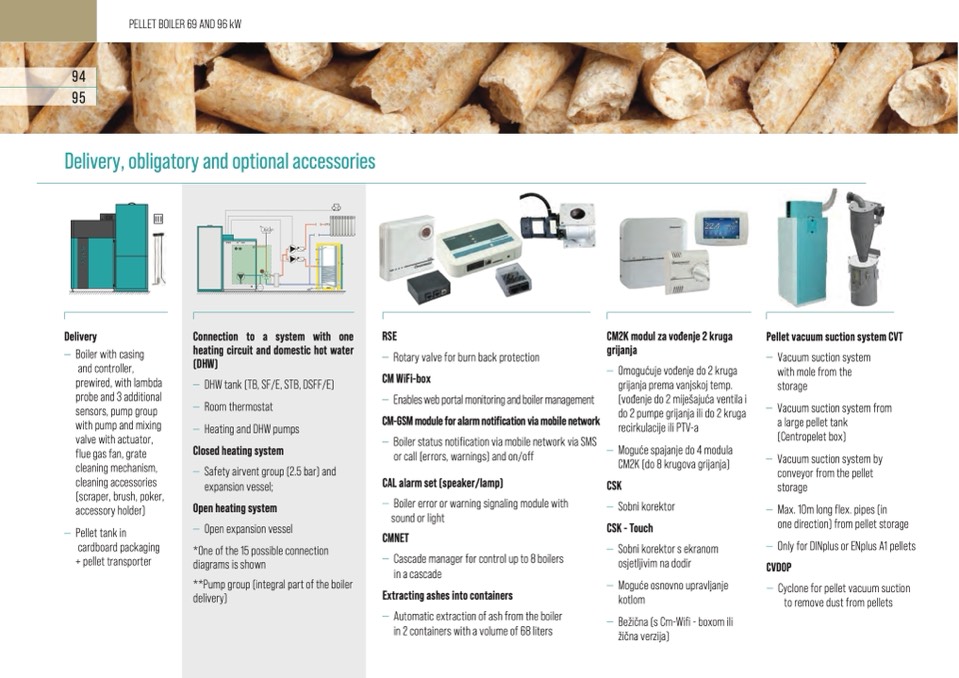

PELLET BOILER 69 AND 96 kW

94

95

Delivery, obligatory and optional accessories

Delivery

— Boiler with casing

and controller,

prewired, with lambda

probe and 3 additional

sensors, pump group

with pump and mixing

valve with actuator,

flue gas fan, grate

cleaning mechanism,

cleaning accessories

(scraper, brush, poker,

accessory holder)

— Pellet tank in

cardboard packaging

+ pellet transporter

Connection to a system with one

heating circuit and domestic hot water

(DHW)

— DHW tank (TB, SF/E, STB, DSFF/E)

— Room thermostat

— Heating and DHW pumps

Closed heating system

— Safety airvent group (2.5 bar) and

expansion vessel;

Open heating system

— Open expansion vessel

*One of the 15 possible connection

diagrams is shown

**Pump group (integral part of the boiler

delivery)

RSE

— Rotary valve for burn back protection

CM WiFi-box

— Enableswebportalmonitoringandboilermanagement

CM-GSM module for alarm notification via mobile network

— Boiler status notification via mobile network via SMS

or call (errors, warnings) and on/off

CAL alarm set (speaker/lamp)

— Boiler error or warning signaling module with

sound or light

CMNET

— Cascade manager for control up to 8 boilers

in a cascade

Extracting ashes into containers

— Automatic extraction of ash from the boiler

in 2 containers with a volume of 68 liters

CM2Kmodulzavođenje2kruga

PelletvacuumsuctionsystemCVT

grijanja

— Omogućuje vođenje do 2 kruga

grijanja prema vanjskoj temp.

(vođenje do 2 miješajuća ventila i

do 2 pumpe grijanja ili do 2 kruga

recirkulacije ili PTV-a

— Moguće spajanje do 4 modula

CM2K (do 8 krugova grijanja)

CSK

— Sobni korektor

CSK - Touch

— Vacuum suction system

with mole from the

storage

— Vacuum suction system from

a large pellet tank

(Centropelet box)

— Vacuum suction system by

conveyor from the pellet

storage

— Max. 10m long flex. pipes (in

one direction) from pellet storage

— Sobni korektor s ekranom

osjetljivim na dodir

CVDOP

— Moguće osnovno upravljanje

kotlom

— Bežična (s Cm-Wifi - boxom ili

žična verzija)

— Only for DINplus or ENplus A1 pellets

— Cyclone for pellet vacuum suction

to remove dust from pellets
