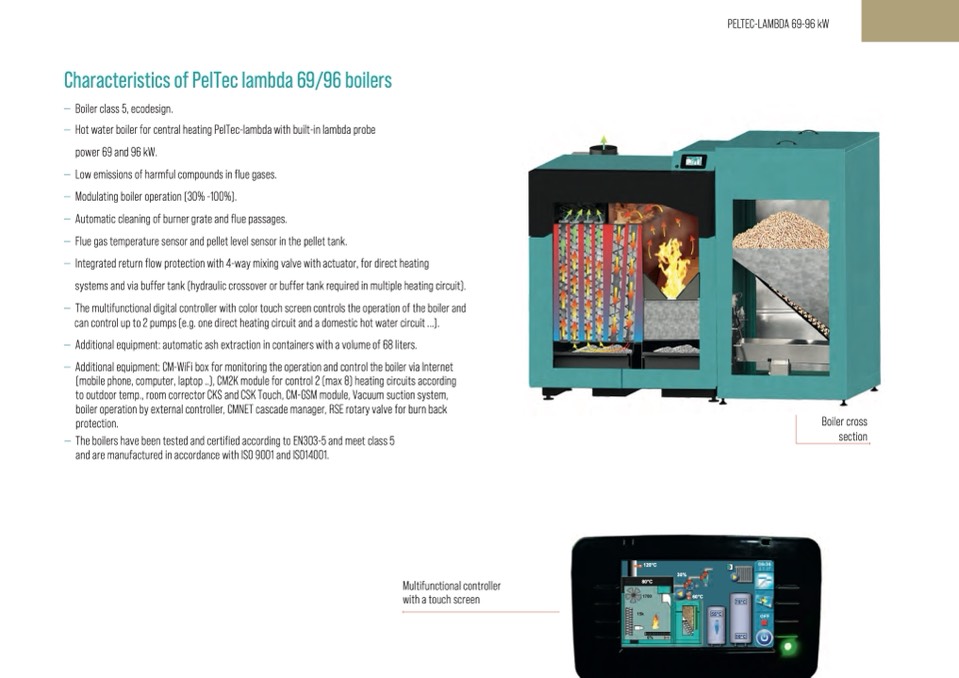

Characteristics of PelTec lambda 69/96 boilers

— Boiler class 5, ecodesign.

— Hot water boiler for central heating PelTec-lambda with built-in lambda probe

power 69 and 96 kW.

— Low emissions of harmful compounds in flue gases.

— Modulating boiler operation (30% -100%).

— Automatic cleaning of burner grate and flue passages.

— Flue gas temperature sensor and pellet level sensor in the pellet tank.

— Integrated return flow protection with 4-way mixing valve with actuator, for direct heating

systems and via buffer tank (hydraulic crossover or buffer tank required in multiple heating circuit).

— The multifunctional digital controller with color touch screen controls the operation of the boiler and

can control up to 2 pumps (e.g. one direct heating circuit and a domestic hot water circuit ...).

— Additional equipment: automatic ash extraction in containers with a volume of 68 liters.

— Additional equipment: CM-WiFi box for monitoring the operation and control the boiler via Internet

(mobile phone, computer, laptop ..), CM2K module for control 2 (max 8) heating circuits according

to outdoor temp., room corrector CKS and CSK Touch, CM-GSM module, Vacuum suction system,

boiler operation by external controller, CMNET cascade manager, RSE rotary valve for burn back

protection.

Boiler cross

section

— The boilers have been tested and certified according to EN303-5 and meet class 5

and are manufactured in accordance with ISO 9001 and ISO14001.

PELTEC-LAMBDA 69-96 kW

Multifunctional controller

with a touch screen

120°C

30%

80°C

1700

15k

0%

60°C

70°C

55°C

50°C
