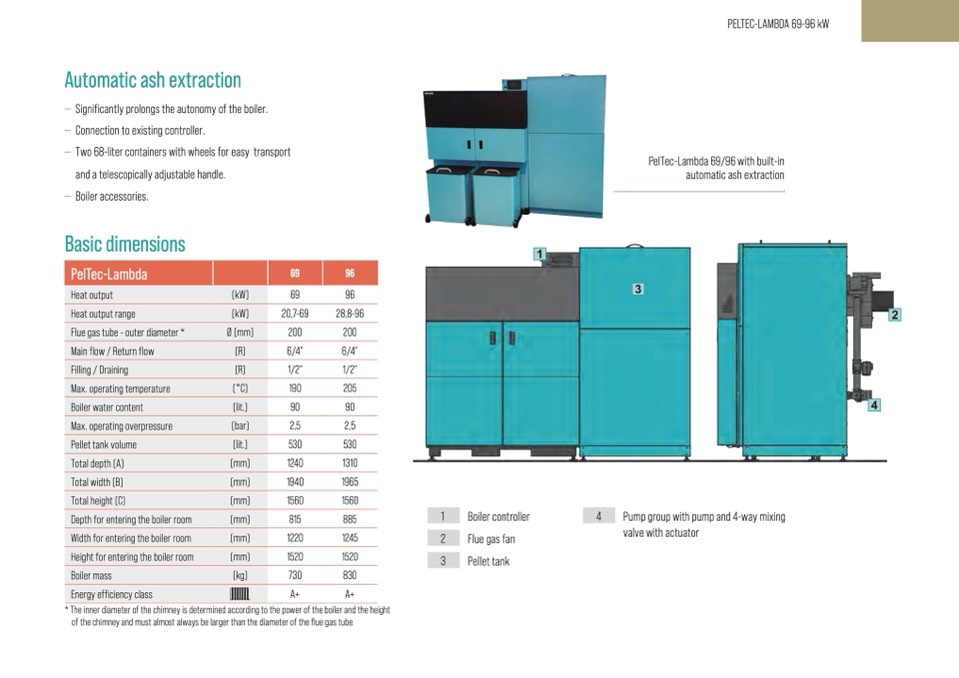

Automatic ash extraction
— Significantly prolongs the autonomy of the boiler.
— Connection to existing controller.
— Two 68-liter containers with wheels for easy transport
and a telescopically adjustable handle.
— Boiler accessories.
Basic dimensions
PelTec-Lambda 69/96 with built-in
automatic ash extraction
PELTEC-LAMBDA 69-96 kW
PelTec-Lambda
69
96
Heat output
(kW)
Heat output range
Flue gas tube - outer diameter *
Main flow / Return flow
(kW)
Ø (mm)
(R)
Filling / Draining
(R)
Max. operating temperature
(°C)
Boiler water content
(lit.)
Max. operating overpressure
Pellet tank volume
Total height (C)
(bar)
(lit.)
Total depth (A)
(mm)
Total width (B)
(mm)
(mm)
Depth for entering the boiler room
(mm)
Width for entering the boiler room
(mm)
Height for entering the boiler room
(mm)
Boiler mass
(kg)
Energy efficiency class
69
96
20,7-69
28,8-96
200
200
6/4"
6/4"
1/2"
1/2"
190
205
90
90
2,5
2,5
530
530
1240
1310
1940
1965
1560
1560
815
885
1
Boiler controller
Flue gas fan
Pellet tank
4
Pump group with pump and 4-way mixing
valve with actuator
1220
1245
2
1520
1520
730
830
A+
A+
3
* The inner diameter of the chimney is determined according to the power of the boiler and the height
of the chimney and must almost always be larger than the diameter of the flue gas tube
