Delivery

— Boiler with casing

with 3 additional

sensors, pump group

with pump and mixing

valve with actuator,

flue gas fan, grate

cleaning mechanism,

cleaning accessories

(scraper, brush, poker,

accessory holder)

— Pellet tank in cardboard

packaging + pellet

transporter

Connection to a system with one

heating circuit and domestic hot

water (DHW)

— DHW tank (TB, SF/E, STB,

DSFF/E)

— Room thermostat

— Heating and DHW pumps

Closed heating system

— Safety airvent group (2,5

bar) and expansion vessel;

Open heating system

— Open expansion vessel

* One of the 15 possible

connection diagrams is shown

** Pump group (integral part of

the boiler delivery)

GSM module for alarm notification via mobile

network // CAL // CMNET // CM WiFi-box

— Boiler status notification via mobile network

via SMS or call (errors, warnings ...)

— Boiler condition inquiry - operating phase,

temp. boiler, via SMS in the selected language

— Boiler start/stop via SMS

CAL alarm set (speaker/lamp)

— Boiler error or warning signaling

module with sound or light

CMNET

— Cascade module for control up to 8

boilers in cascade

CM WiFi-box

— Provides web portal monitoring and

boiler management

CM2K control module for 2

heating circuits/ CSK / CSK-

Touch

Pellet vacuum suction system CVT

— Vacuum suction system with

mole from the pellet storage

— Vacuum suction system

from a large pellet tank

(Centropelet box)

— Vacuum suction system

by conveyor from the

pellet storage

— Max. 10m long flex. pipes

(in one direction) from pellet

storage

— For DINplus or ENplus A1

pellets only

CVDOP

— Cyclone for pellet vacuum

suction system to remove

dust from pellets

Pellet tank extension

— Increase the

volume of

pellet tank by

+77kg

— Extension height

h=300mm

Refilling tank with

transporter

— Refill the tank

with a screw

transporter from

larger tank CPSP-

BP 800

PELLET BOILER

86

87

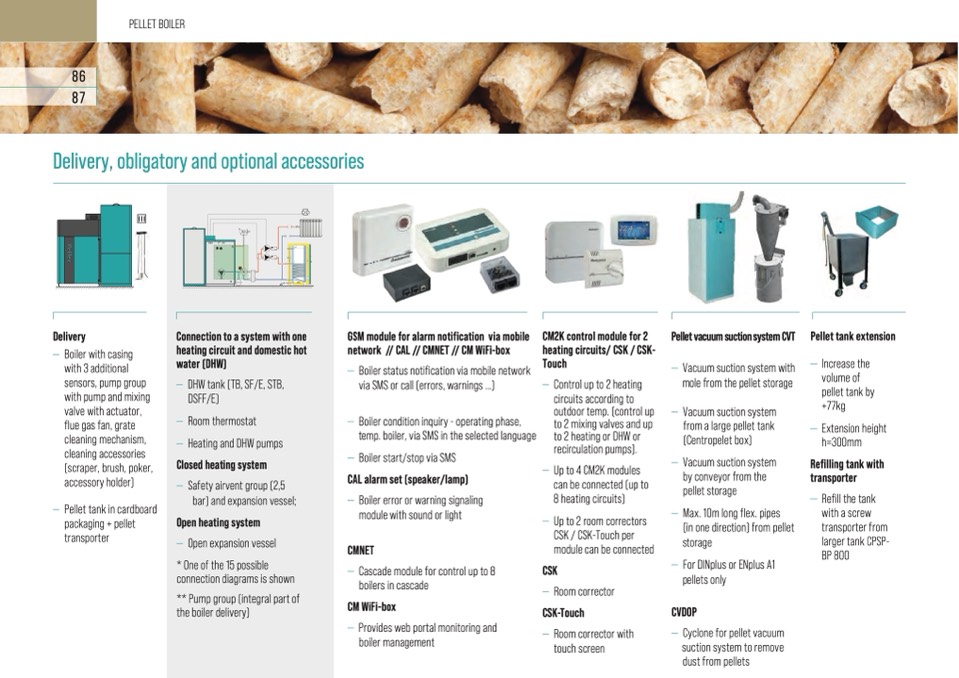

Delivery, obligatory and optional accessories

bar

**

P

e

l

T

e

c

M

VH

— Control up to 2 heating

circuits according to

outdoor temp. (control

to 2 mixing valves and

to 2 heating or DHW or

recirculation pumps).

up

up

— Up to 4 CM2K modules

can be connected (up to

8 heating circuits)

— Up to 2 room correctors

CSK / CSK-Touch per

module can be connected

CSK

— Room corrector

CSK-Touch

— Room corrector with

touch screen
