PELTEC 12-48 kW

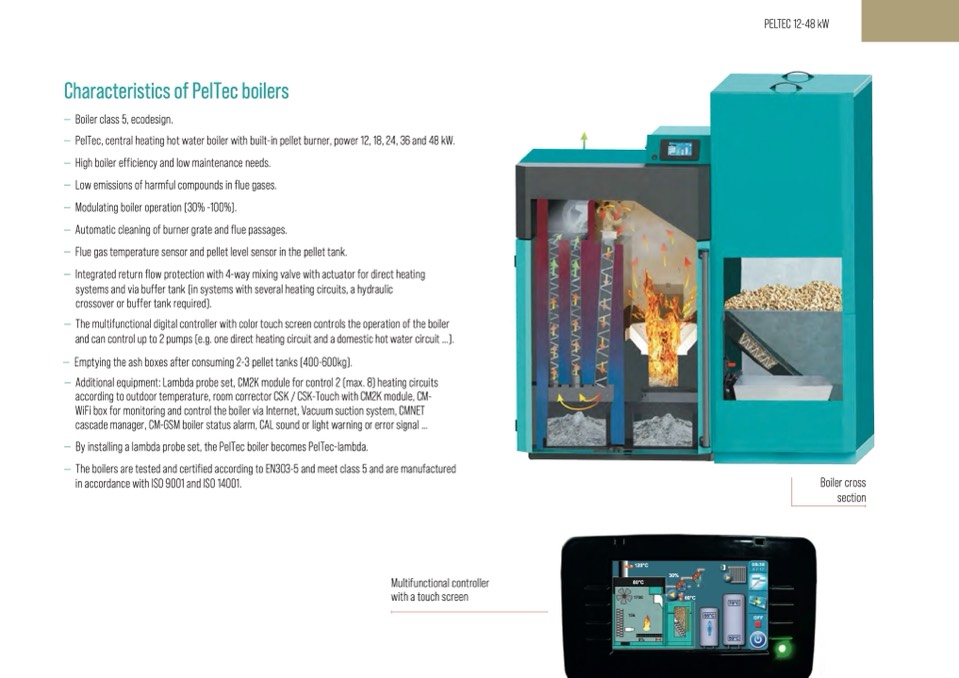

Characteristics of PelTec boilers

— Boiler class 5, ecodesign.

— PelTec, central heating hot water boiler with built-in pellet burner, power 12, 18, 24, 36 and 48 kW.

— High boiler efficiency and low maintenance needs.

— Low emissions of harmful compounds in flue gases.

— Modulating boiler operation (30% -100%).

— Automatic cleaning of burner grate and flue passages.

— Flue gas temperature sensor and pellet level sensor in the pellet tank.

— Integrated return flow protection with 4-way mixing valve with actuator for direct heating

systems and via buffer tank (in systems with several heating circuits, a hydraulic

crossover or buffer tank required).

— The multifunctional digital controller with color touch screen controls the operation of the boiler

and can control up to 2 pumps (e.g. one direct heating circuit and a domestic hot water circuit ...).

— Emptying the ash boxes after consuming 2-3 pellet tanks (400-600kg).

— Additional equipment: Lambda probe set, CM2K module for control 2 (max. 8) heating circuits

according to outdoor temperature, room corrector CSK / CSK-Touch with CM2K module, CM-

WiFi box for monitoring and control the boiler via Internet, Vacuum suction system, CMNET

cascade manager, CM-GSM boiler status alarm, CAL sound or light warning or error signal ...

— By installing a lambda probe set, the PelTec boiler becomes PelTec-lambda.

— The boilers are tested and certified according to EN303-5 and meet class 5 and are manufactured

in accordance with ISO 9001 and ISO 14001.

Multifunctional controller

with a touch screen

Boiler cross

section
