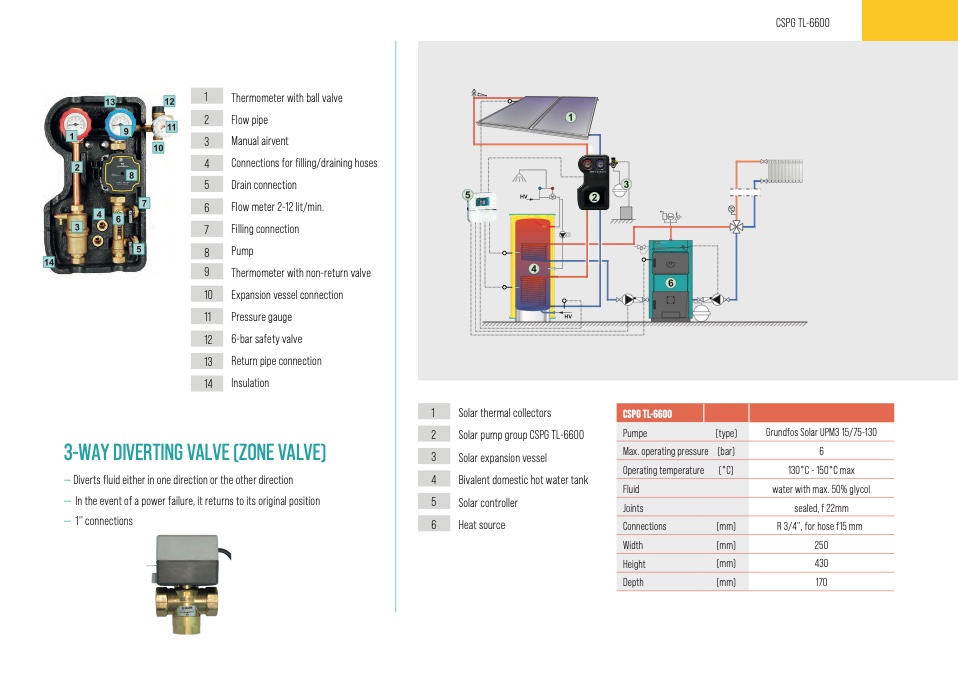

CSPG TL-6600

1

Thermometer with ball valve

2

Flow pipe

3

Manual airvent

4

Connections for filling/draining hoses

5

Drain connection

6

Flow meter 2-12 lit/min.

7

Filling connection

Pump

Thermometer with non-return valve

10

Expansion vessel connection

11

Pressure gauge

12

6-bar safety valve

13

Return pipe connection

Insulation

8

9

14

CSPG TL-6600

Pumpe

(type)

Max. operating pressure (bar)

Operating temperature (°C)

Fluid

Joints

Connections

(mm)

Width

(mm)

Height

(mm)

Depth

(mm)

3-WAY DIVERTING VALVE (ZONE VALVE)

3

— Diverts fluid either in one direction or the other direction

— In the event of a power failure, it returns to its original position

— 1'' connections

1

Solar thermal collectors

2

Solar pump group CSPG TL-6600

Grundfos Solar UPM3 15/75-130

6

130°C - 150°C max

water with max. 50% glycol

sealed, f 22mm

R 3/4'’, for hose f15 mm

250

430

170

Solar expansion vessel

4

Bivalent domestic hot water tank

5

Solar controller

6

Heat source
