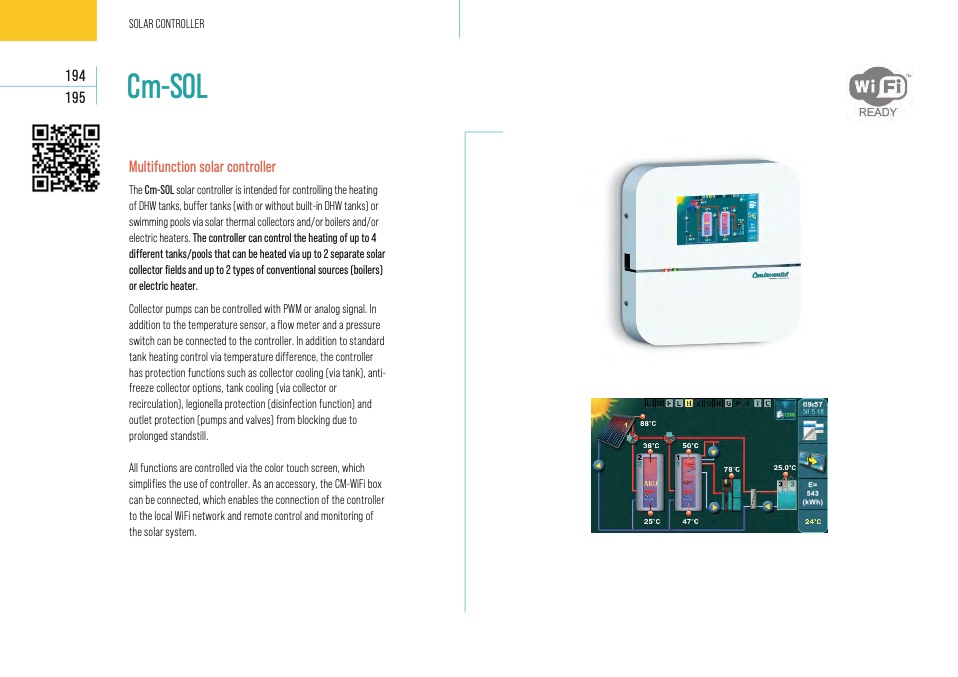

SOLAR CONTROLLER

Cm-SOL

Multifunction solar controller

The Cm-SOL solar controller is intended for controlling the heating

of DHW tanks, buffer tanks (with or without built-in DHW tanks) or

swimming pools via solar thermal collectors and/or boilers and/or

electric heaters. The controller can control the heating of up to 4

different tanks/pools that can be heated via up to 2 separate solar

collector fields and up to 2 types of conventional sources (boilers)

or electric heater.

Collector pumps can be controlled with PWM or analog signal. In

addition to the temperature sensor, a flow meter and a pressure

switch can be connected to the controller. In addition to standard

tank heating control via temperature difference, the controller

has protection functions such as collector cooling (via tank), anti-

freeze collector options, tank cooling (via collector or

recirculation), legionella protection (disinfection function) and

outlet protection (pumps and valves) from blocking due to

prolonged standstill.

All functions are controlled via the color touch screen, which

simplifies the use of controller. As an accessory, the CM-WiFi box

can be connected, which enables the connection of the controller

to the local WiFi network and remote control and monitoring of

the solar system.
