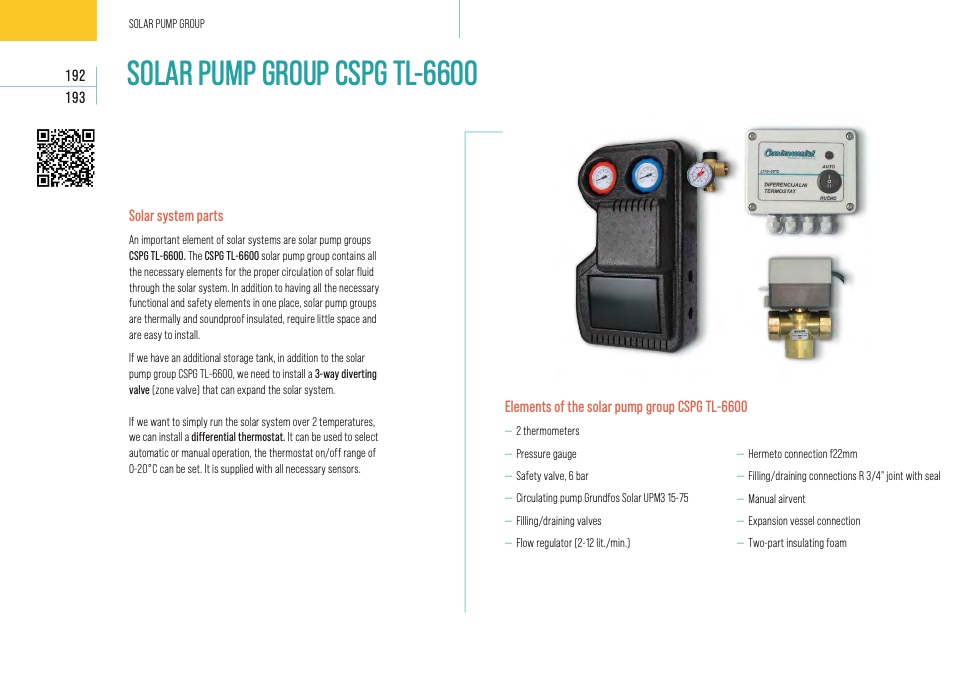

SOLAR PUMP GROUP

SOLAR PUMP GROUP CSPG TL-6600

Solar system parts

An important element of solar systems are solar pump groups

CSPG TL-6600. The CSPG TL-6600 solar pump group contains all

the necessary elements for the proper circulation of solar fluid

through the solar system. In addition to having all the necessary

functional and safety elements in one place, solar pump groups

are thermally and soundproof insulated, require little space and

are easy to install.

If we have an additional storage tank, in addition to the solar

pump group CSPG TL-6600, we need to install a 3-way diverting

valve (zone valve) that can expand the solar system.

If we want to simply run the solar system over 2 temperatures,

we can install a differential thermostat. It can be used to select

automatic or manual operation, the thermostat on/off range of

0-20°C can be set. It is supplied with all necessary sensors.

Elements of the solar pump group CSPG TL-6600

— 2 thermometers

— Pressure gauge

— Safety valve, 6 bar

— Circulating pump Grundfos Solar UPM3 15-75

— Filling/draining valves

— Flow regulator (2-12 lit./min.)

— Hermeto connection f22mm

— Filling/draining connections R 3/4" joint with seal

— Manual airvent

— Expansion vessel connection

— Two-part insulating foam
