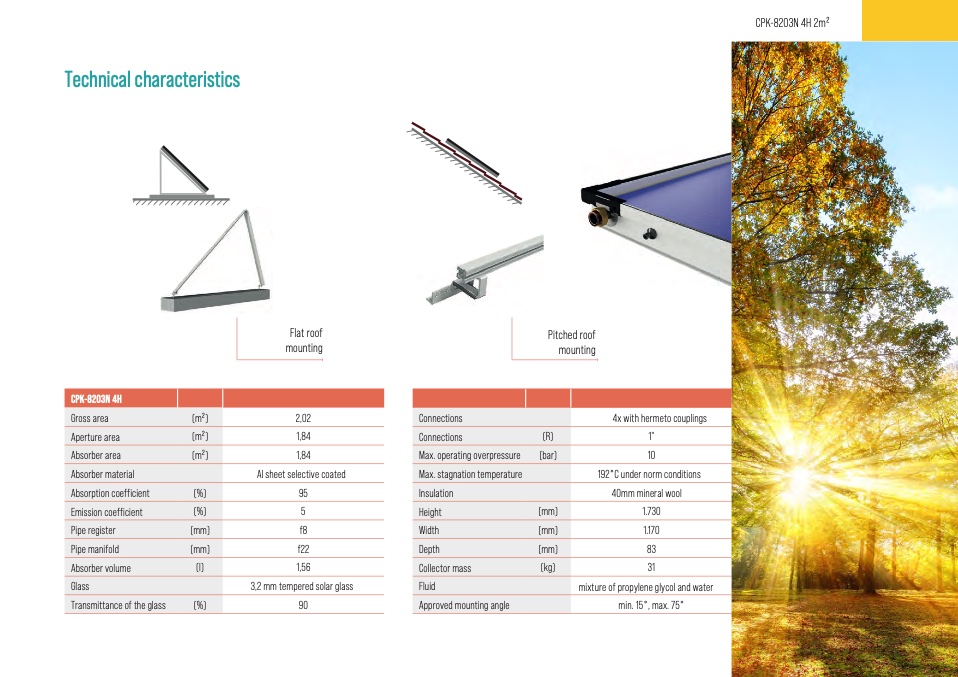

Technical characteristics

CPK-8203N 4H 2m2

Flat roof

mounting

2,02

1,84

1,84

Al sheet selective coated

95

5

f8

f22

1,56

3,2 mm tempered solar glass

90

Pitched roof

mounting

CPK-8203N 4H

Gross area

Aperture area

(m2)

(m2)

Absorber area

Absorber material

(m2)

Absorption coefficient

(%)

Emission coefficient

(%)

Pipe register

(mm)

Pipe manifold

(mm)

Absorber volume

(l)

Glass

Transmittance of the glass

(%)

Connections

4x with hermeto couplings

Connections

Max. operating overpressure

(R)

1"

(bar)

10

Max. stagnation temperature

192°C under norm conditions

Insulation

Height

(mm)

40mm mineral wool

1.730

Width

Depth

(mm)

1.170

(mm)

83

Collector mass

(kg)

mixture of propylene glycol and water

31

Fluid

Approved mounting angle

min. 15°, max. 75°
