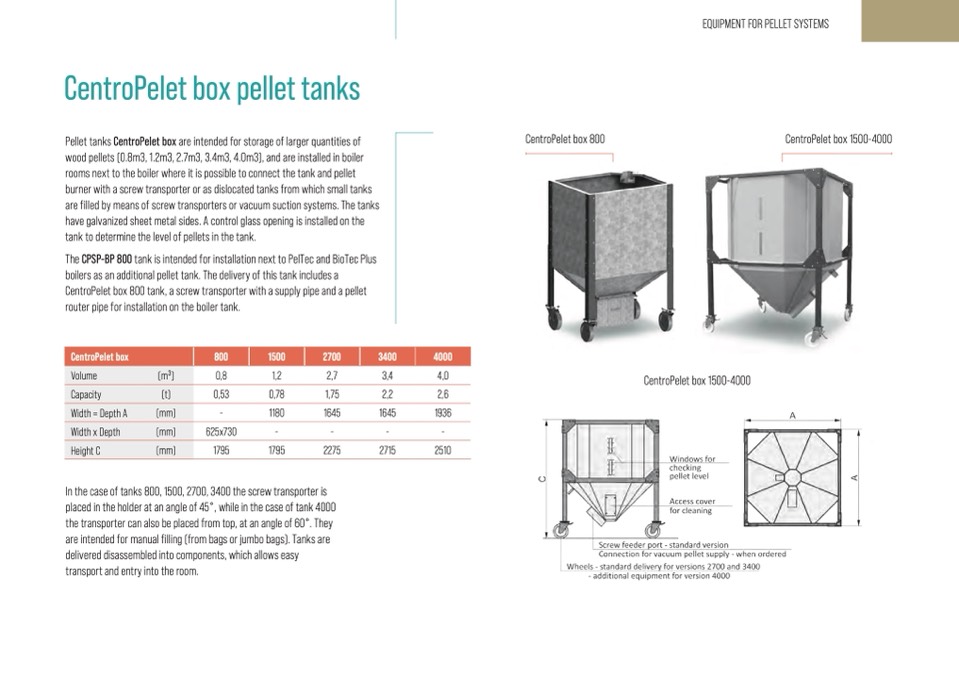

CentroPelet box pellet tanks

Pellet tanks CentroPelet box are intended for storage of larger quantities of

wood pellets (0.8m3, 1.2m3, 2.7m3, 3.4m3, 4.0m3), and are installed in boiler

rooms next to the boiler where it is possible to connect the tank and pellet

burner with a screw transporter or as dislocated tanks from which small tanks

are filled by means of screw transporters or vacuum suction systems. The tanks

have galvanized sheet metal sides. A control glass opening is installed on the

tank to determine the level of pellets in the tank.

The CPSP-BP 800 tank is intended for installation next to PelTec and BioTec Plus

boilers as an additional pellet tank. The delivery of this tank includes a

CentroPelet box 800 tank, a screw transporter with a supply pipe and a pellet

router pipe for installation on the boiler tank.

CentroPelet box 800

CentroPelet box 800

CentroPelet box 1500-4000

CentroPelet box 1500-4000

EQUIPMENT FOR PELLET SYSTEMS

CentroPelet box

800

1500

2700

3400

4000

Volume

(m3)

0,8

1,2

2,7

3,4

4,0

Capacity

(t)

0,53

0,78

1,75

2,2

2,6

Width = Depth A

(mm)

-

1180

1645

1645

1936

Width x Depth

(mm)

625x730

-

-

-

-

Height C

(mm)

1795

1795

2275

2715

2510

CentroPelet box 1500-4000

In the case of tanks 800, 1500, 2700, 3400 the screw transporter is

placed in the holder at an angle of 45°, while in the case of tank 4000

the transporter can also be placed from top, at an angle of 60°. They

are intended for manual filling (from bags or jumbo bags). Tanks are

delivered disassembled into components, which allows easy

transport and entry into the room.
