EXAMPLE

Vacuum suction

system with mole from

pellet storage/room

106

107

EQUIPMENT FOR PELLET SYSTEMS

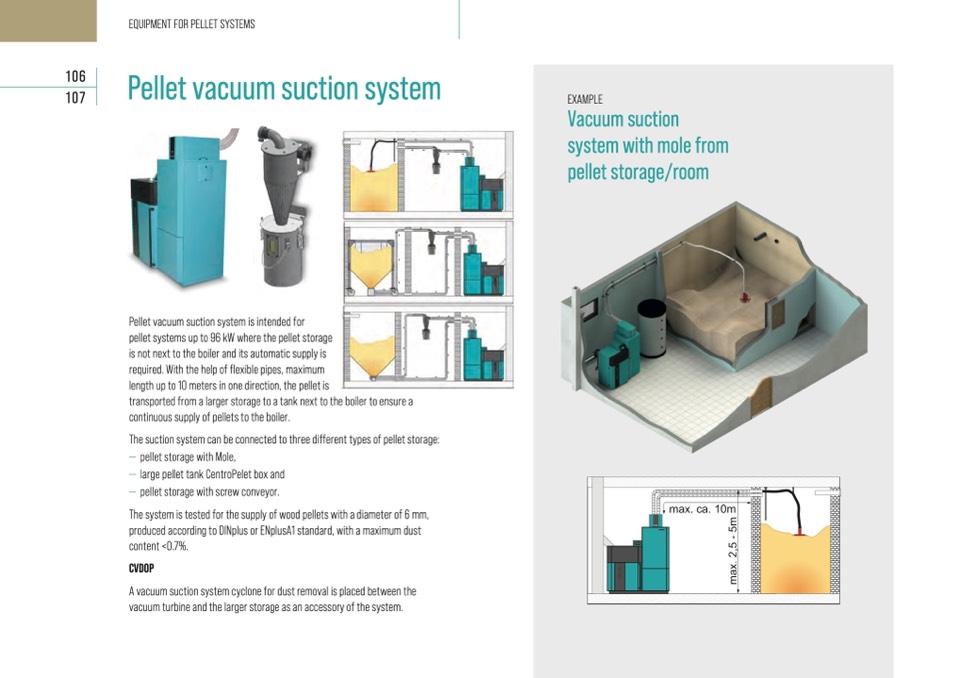

Pellet vacuum suction system

Pellet vacuum suction system is intended for

pellet systems up to 96 kW where the pellet storage

is not next to the boiler and its automatic supply is

required. With the help of flexible pipes, maximum

length up to 10 meters in one direction, the pellet is

transported from a larger storage to a tank next to the boiler to ensure a

continuous supply of pellets to the boiler.

The suction system can be connected to three different types of pellet storage:

— pellet storage with Mole,

— large pellet tank CentroPelet box and

— pellet storage with screw conveyor.

The system is tested for the supply of wood pellets with a diameter of 6 mm,

produced according to DINplus or ENplusA1 standard, with a maximum dust

content <0.7%.

CVDOP

A vacuum suction system cyclone for dust removal is placed between the

vacuum turbine and the larger storage as an accessory of the system.
