104

105

Pellet tank

CPSP-M

CPSP

CPSP-H

CPSP-800

Volume

Capacity

(lit.)

(kg)

Width A

Depth B

(mm)

(mm)

Height C

(mm)

For Cm Pelet-set Touch

12-50 kW

For Cm Pelet-set Touch

51-90 kW

For Cm Pelet-set

Touch 91-560 kW

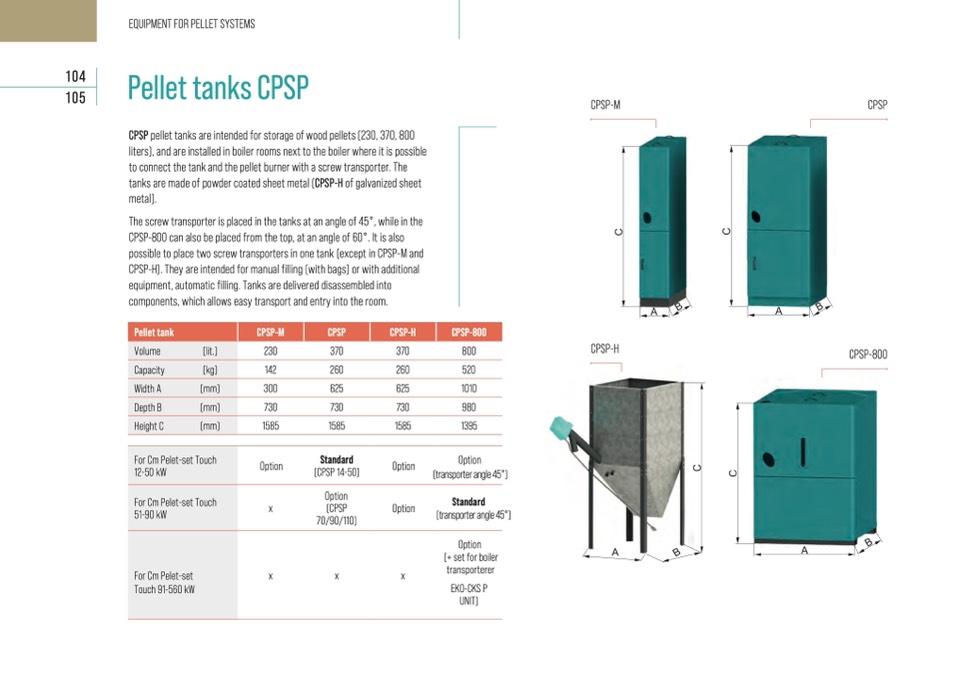

EQUIPMENT FOR PELLET SYSTEMS

Pellet tanks CPSP

CPSP pellet tanks are intended for storage of wood pellets (230, 370, 800

liters), and are installed in boiler rooms next to the boiler where it is possible

to connect the tank and the pellet burner with a screw transporter. The

tanks are made of powder coated sheet metal (CPSP-H of galvanized sheet

metal).

The screw transporter is placed in the tanks at an angle of 45°, while in the

CPSP-800 can also be placed from the top, at an angle of 60°. It is also

possible to place two screw transporters in one tank (except in CPSP-M and

CPSP-H). They are intended for manual filling (with bags) or with additional

equipment, automatic filling. Tanks are delivered disassembled into

components, which allows easy transport and entry into the room.

CPSP-M

CPSP

230

142

300

730

1585

Option

x

370

260

625

730

1585

Standard

(CPSP 14-50)

Option

(CPSP

Option

70/90/110)

CPSP-H

370

800

260

520

625

1010

730

980

1585

1395

CPSP-800

Option

Option

x

x

x

(transporter angle 45°)

Standard

(transporter angle 45°)

Option

(+ set for boiler

transporterer

EKO-CKS P

UNIT)
