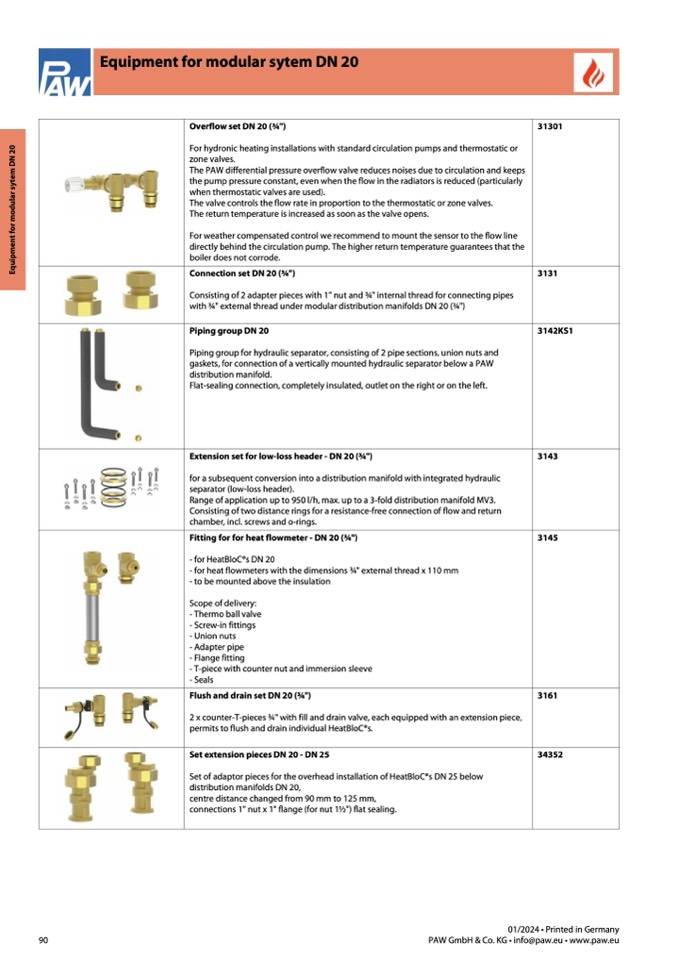

Equipment for modular sytem DN 20

Overflow set DN 20 (

3⁄4")

For hydronic heating installations with standard circulation pumps and thermostatic or

zone valves.

The PAW differential pressure overflow valve reduces noises due to circulation and keeps

the pump pressure constant, even when the flow in the radiators is reduced (particularly

when thermostatic valves are used).

The valve controls the flow rate in proportion to the thermostatic or zone valves.

The return temperature is increased as soon as the valve opens.

For weather compensated control we recommend to mount the sensor to the flow line

directly behind the circulation pump. The higher return temperature guarantees that the

boiler does not corrode.

31301

Connection set DN 20 (

3⁄4")

Consisting of 2 adapter pieces with 1" nut and

3⁄4" internal thread for connecting pipes

with

3⁄4" external thread under modular distribution manifolds DN 20 (

3⁄4")

3131

Piping group DN 20

Piping group for hydraulic separator, consisting of 2 pipe sections, union nuts and

gaskets, for connection of a vertically mounted hydraulic separator below a PAW

distribution manifold.

Flat-sealing connection, completely insulated, outlet on the right or on the left.

3142KS1

Extension set for low-loss header - DN 20 (

3⁄4")

for a subsequent conversion into a distribution manifold with integrated hydraulic

separator (low-loss header).

Range of application up to 950 l/h, max. up to a 3-fold distribution manifold MV3.

Consisting of two distance rings for a resistance-free connection of flow and return

chamber, incl. screws and o-rings.

3143

Fitting for for heat flowmeter - DN 20 (

3⁄4")

- for HeatBloC®s DN 20

- for heat flowmeters with the dimensions

3⁄4" external thread x 110 mm

- to be mounted above the insulation

Scope of delivery:

- Thermo ball valve

- Screw-in fittings

- Union nuts

- Adapter pipe

- Flange fitting

- T-piece with counter nut and immersion sleeve

- Seals

3145

Flush and drain set DN 20 (

3⁄4")

2 x counter-T-pieces

3⁄4" with fill and drain valve, each equipped with an extension piece,

permits to flush and drain individual HeatBloC®s.

3161

Set extension pieces DN 20 - DN 25

Set of adaptor pieces for the overhead installation of HeatBloC®s DN 25 below

distribution manifolds DN 20,

centre distance changed from 90 mm to 125 mm,

connections 1" nut x 1" flange (for nut 11⁄2") flat sealing.

34352
