Paw - 01/2024

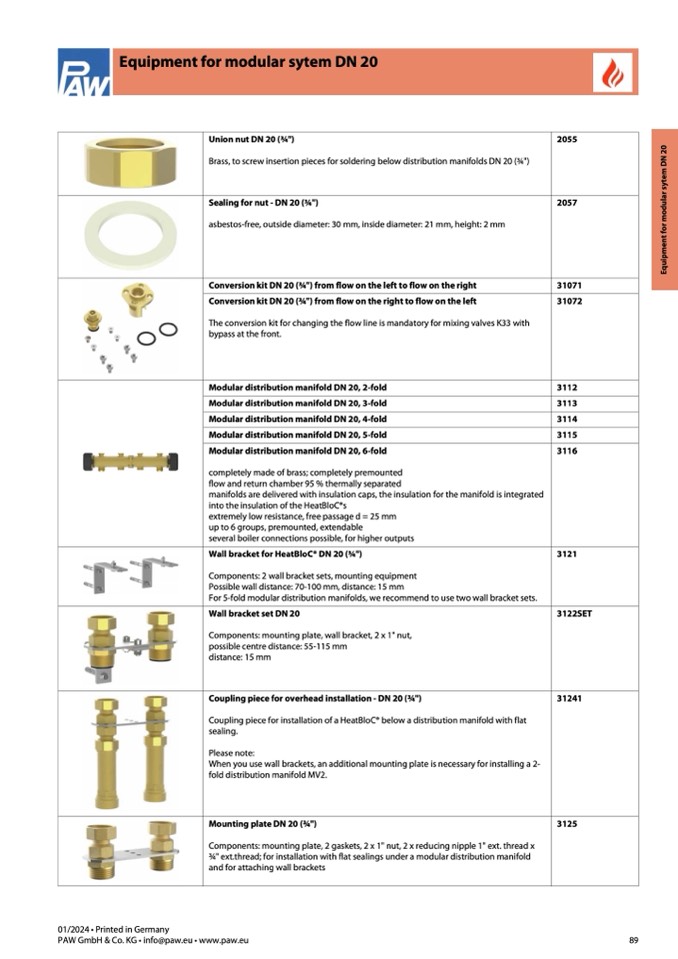

Equipment for modular sytem DN 20

Union nut DN 20 (

3⁄4")

Brass, to screw insertion pieces for soldering below distribution manifolds DN 20 (

3⁄4")

Sealing for nut - DN 20 (

3⁄4")

asbestos-free, outside diameter: 30 mm, inside diameter: 21 mm, height: 2 mm

2055

2057

Conversion kit DN 20 (

3⁄4") from flow on the left to flow on the right

Modular distribution manifold DN 20, 2-fold

Modular distribution manifold DN 20, 3-fold

Modular distribution manifold DN 20, 4-fold

Modular distribution manifold DN 20, 5-fold

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

31071

3112

3113

3114

3115

Conversion kit DN 20 (

3⁄4") from flow on the right to flow on the left

The conversion kit for changing the flow line is mandatory for mixing valves K33 with

bypass at the front.

31072

Modular distribution manifold DN 20, 6-fold

completely made of brass; completely premounted

flow and return chamber 95 % thermally separated

manifolds are delivered with insulation caps, the insulation for the manifold is integrated

into the insulation of the HeatBloC®s

extremely low resistance, free passage d = 25 mm

up to 6 groups, premounted, extendable

several boiler connections possible, for higher outputs

3116

Wall bracket for HeatBloC® DN 20 (

3⁄4")

Components: 2 wall bracket sets, mounting equipment

Possible wall distance: 70-100 mm, distance: 15 mm

For 5-fold modular distribution manifolds, we recommend to use two wall bracket sets.

3121

Wall bracket set DN 20

Components: mounting plate, wall bracket, 2 x 1" nut,

possible centre distance: 55-115 mm

distance: 15 mm

3122SET

Coupling piece for overhead installation - DN 20 (

3⁄4")

Coupling piece for installation of a HeatBloC® below a distribution manifold with flat

sealing.

Please note:

When you use wall brackets, an additional mounting plate is necessary for installing a 2-

fold distribution manifold MV2.

31241

Mounting plate DN 20 (3⁄4")

Components: mounting plate, 2 gaskets, 2 x 1" nut, 2 x reducing nipple 1" ext. thread x

3⁄4" ext.thread; for installation with flat sealings under a modular distribution manifold

and for attaching wall brackets

3125
