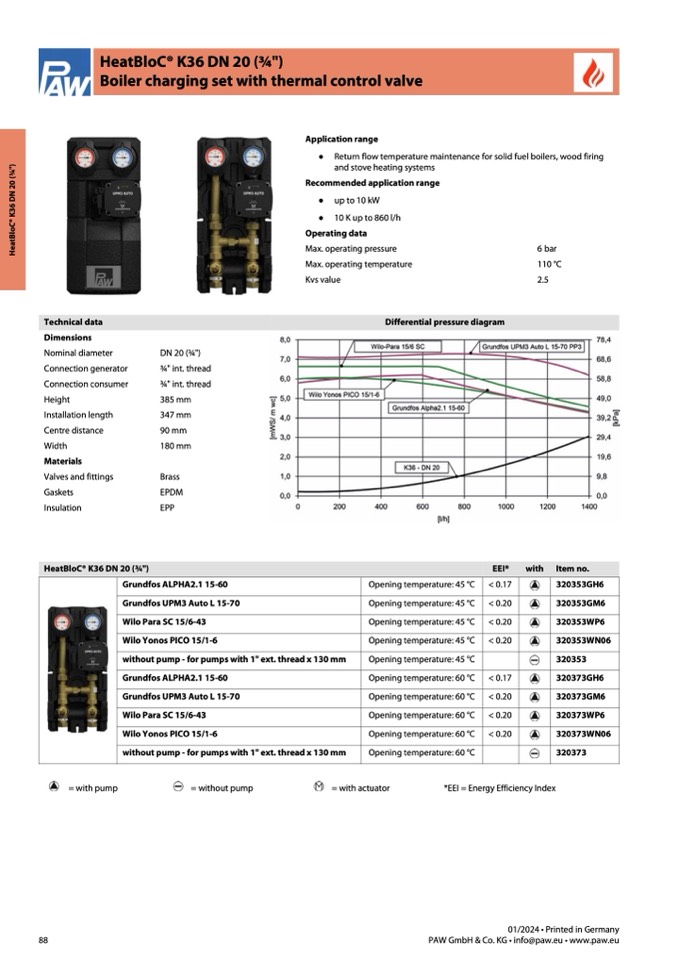

HeatBloC® K36 DN 20 (3⁄4")

Boiler charging set with thermal control valve

H

e

a

t

B

l

o

C

®

K

3

6

D

N

2

0

(

3⁄

4

"

)

Technical data

HeatBloC® K36 DN 20 (

3⁄4")

Item no.

Application range

● Return flow temperature maintenance for solid

and stove heating systems

Recommended application range

● up to 10 kW

● 10 K up to 860 l/h

Operating data

Max. operating pressure

Max. operating temperature

Kvs value

fuel boilers, wood firing

6 bar

110 °C

2.5

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

Materials

Valves and fittings

Gaskets

Insulation

Differential pressure diagram

DN 20 (

3⁄4")

3⁄4" int. thread

3⁄4" int. thread

385 mm

347 mm

90 mm

180 mm

Brass

EPDM

EPP

Grundfos ALPHA2.1 15-60

Grundfos UPM3 Auto L 15-70

Wilo Para SC 15/6-43

Wilo Yonos PICO 15/1-6

without pump - for pumps with 1" ext. thread x 130 mm

Grundfos ALPHA2.1 15-60

Grundfos UPM3 Auto L 15-70

Wilo Para SC 15/6-43

Wilo Yonos PICO 15/1-6

without pump - for pumps with 1" ext. thread x 130 mm

Opening temperature: 45 °C

Opening temperature: 45 °C

Opening temperature: 45 °C

Opening temperature: 45 °C

Opening temperature: 45 °C

Opening temperature: 60 °C

Opening temperature: 60 °C

Opening temperature: 60 °C

Opening temperature: 60 °C

Opening temperature: 60 °C

EEI*

< 0.17

< 0.20

< 0.20

< 0.20

< 0.17

< 0.20

< 0.20

< 0.20

with

320353GH6

320353GM6

320353WP6

320353WN06

320353

320373GH6

320373GM6

320373WP6

320373WN06

320373

88

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

= with pump

= without pump

= with actuator

*EEI = Energy Efficiency Index
