Paw - 01/2024

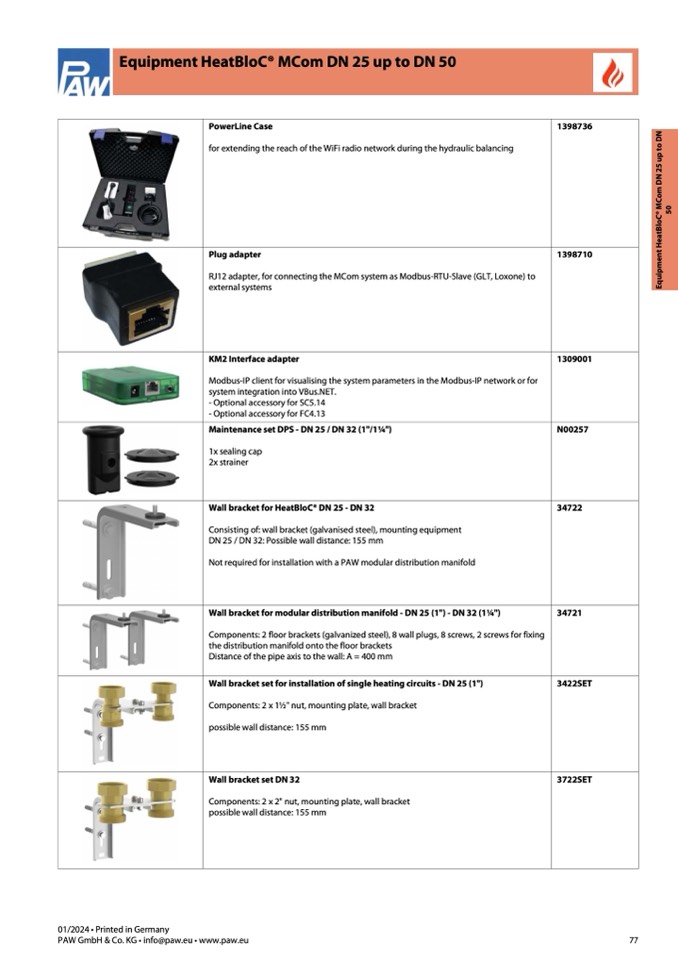

PowerLine Case

for extending the reach of the WiFi radio network during the hydraulic balancing

1398736

Plug adapter

RJ12 adapter, for connecting the MCom system as Modbus-RTU-Slave (GLT, Loxone) to

external systems

1398710

KM2 Interface adapter

Modbus-IP client for visualising the system parameters in the Modbus-IP network or for

system integration into VBus.NET.

- Optional accessory for SC5.14

- Optional accessory for FC4.13

1309001

Maintenance set DPS - DN 25 / DN 32 (1"/11⁄4")

1x sealing cap

2x strainer

N00257

Wall bracket for HeatBloC® DN 25 - DN 32

Consisting of: wall bracket (galvanised steel), mounting equipment

DN 25 / DN 32: Possible wall distance: 155 mm

Not required for installation with a PAW modular distribution manifold

34722

Wall bracket for modular distribution manifold - DN 25 (1") - DN 32 (1

1⁄4")

Components: 2 floor brackets (galvanized steel), 8 wall plugs, 8 screws, 2 screws for fixing

the distribution manifold onto the floor brackets

Distance of the pipe axis to the wall: A = 400 mm

34721

Wall bracket set for installation of single heating circuits - DN 25 (1")

Components: 2 x 1

1⁄2" nut, mounting plate, wall bracket

possible wall distance: 155 mm

3422SET

Wall bracket set DN 32

Components: 2 x 2" nut, mounting plate, wall bracket

possible wall distance: 155 mm

3722SET

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu
