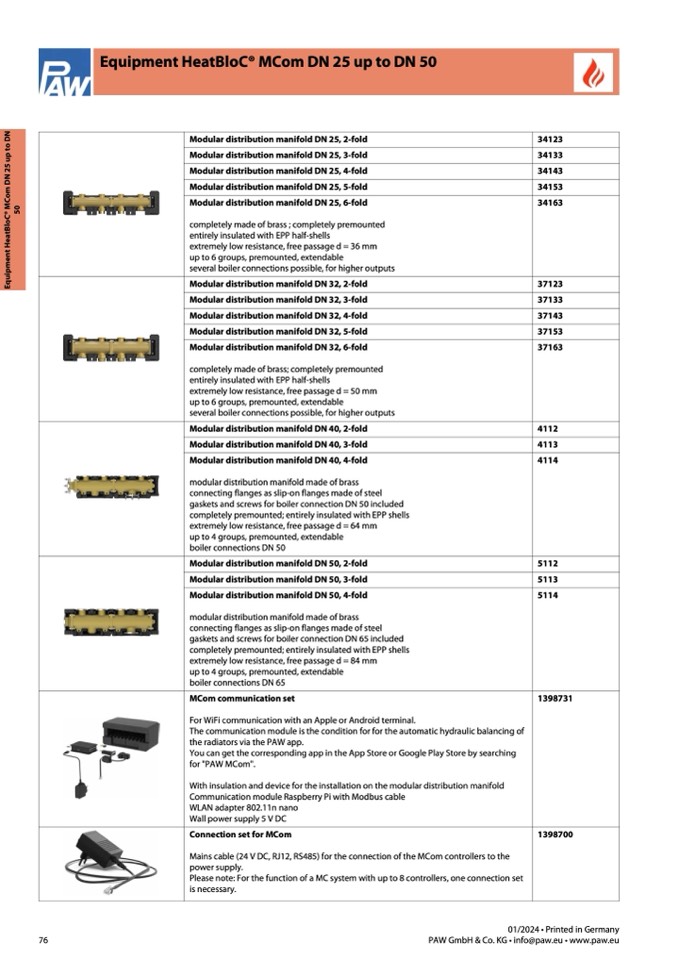

Equipment HeatBloC® MCom DN 25 up to DN 50

E

q

u

i

p

m

e

n

t

H

e

a

t

B

l

o

C

®

M

C

o

m

D

N

2

5

u

p

t

o

D

N

5

0

Modular distribution manifold DN 25, 6-fold

completely made of brass ; completely premounted

entirely insulated with EPP half-shells

extremely low resistance, free passage d = 36 mm

up to 6 groups, premounted, extendable

several boiler connections possible, for higher outputs

34163

Modular distribution manifold DN 32, 6-fold

completely made of brass; completely premounted

entirely insulated with EPP half-shells

extremely low resistance, free passage d = 50 mm

up to 6 groups, premounted, extendable

several boiler connections possible, for higher outputs

37163

Modular distribution manifold DN 40, 4-fold

modular distribution manifold made of brass

connecting flanges as slip-on flanges made of steel

gaskets and screws for boiler connection DN 50 included

completely premounted; entirely insulated with EPP shells

extremely low resistance, free passage d = 64 mm

up to 4 groups, premounted, extendable

boiler connections DN 50

4114

Modular distribution manifold DN 50, 4-fold

modular distribution manifold made of brass

connecting flanges as slip-on flanges made of steel

gaskets and screws for boiler connection DN 65 included

completely premounted; entirely insulated with EPP shells

extremely low resistance, free passage d = 84 mm

up to 4 groups, premounted, extendable

boiler connections DN 65

5114

MCom communication set

For WiFi communication with an Apple or Android terminal.

The communication module is the condition for for the automatic hydraulic balancing of

the radiators via the PAW app.

You can get the corresponding app in the App Store or Google Play Store by searching

for "PAW MCom".

With insulation and device for the installation on the modular distribution manifold

Communication module Raspberry Pi with Modbus cable

WLAN adapter 802.11n nano

Wall power supply 5 V DC

1398731

Connection set for MCom

Mains cable (24 V DC, RJ12, RS485) for the connection of the MCom controllers to the

power supply.

Please note: For the function of a MC system with up to 8 controllers, one connection set

is necessary.

1398700

Modular distribution manifold DN 25, 2-fold

Modular distribution manifold DN 25, 3-fold

Modular distribution manifold DN 25, 4-fold

Modular distribution manifold DN 25, 5-fold

Modular distribution manifold DN 32, 2-fold

Modular distribution manifold DN 32, 3-fold

Modular distribution manifold DN 32, 4-fold

Modular distribution manifold DN 32, 5-fold

Modular distribution manifold DN 40, 2-fold

Modular distribution manifold DN 40, 3-fold

Modular distribution manifold DN 50, 2-fold

Modular distribution manifold DN 50, 3-fold

34123

34133

34143

34153

37123

37133

37143

37153

4112

4113

5112

5113

76
