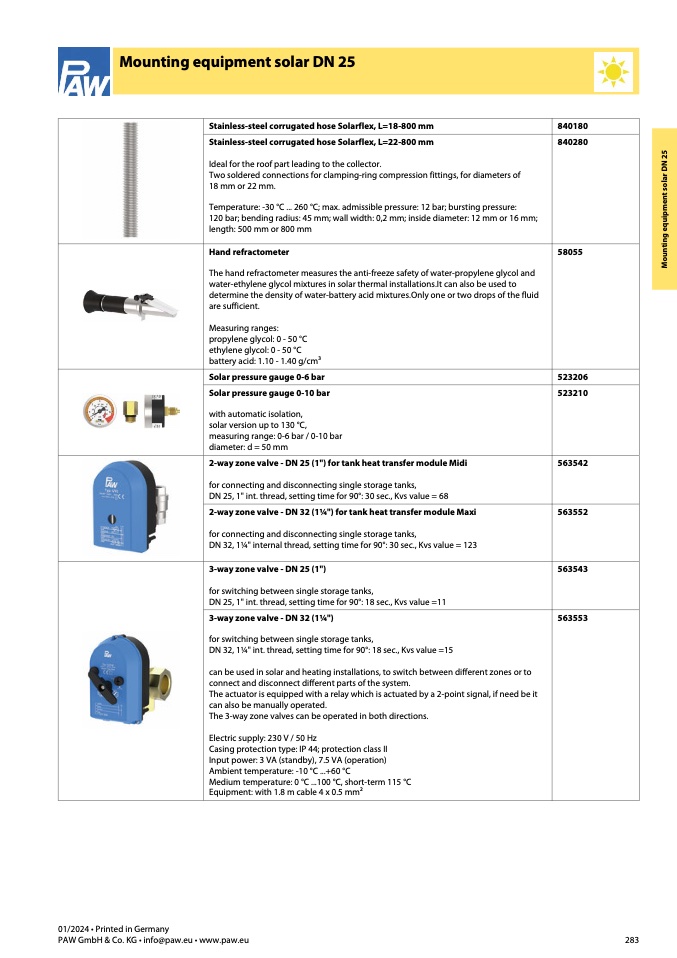

Paw - 01/2024

Mounting equipment solar DN 25

Stainless-steel corrugated hose Solarflex, L=18-800 mm

Solar pressure gauge 0-6 bar

840180

Stainless-steel corrugated hose Solarflex, L=22-800 mm

Ideal for the roof part leading to the collector.

Two soldered connections for clamping-ring compression fittings, for diameters of

18 mm or 22 mm.

Temperature: -30 °C ... 260 °C; max. admissible pressure: 12 bar; bursting pressure:

120 bar; bending radius: 45 mm; wall width: 0,2 mm; inside diameter: 12 mm or 16 mm;

length: 500 mm or 800 mm

840280

Hand refractometer

The hand refractometer measures the anti-freeze safety of water-propylene glycol and

water-ethylene glycol mixtures in solar thermal installations.It can also be used to

determine the density of water-battery acid mixtures.Only one or two drops of the fluid

are sufficient.

Measuring ranges:

propylene glycol: 0 - 50 °C

ethylene glycol: 0 - 50 °C

battery acid: 1.10 - 1.40 g/cm3

58055

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

283

523206

Solar pressure gauge 0-10 bar

with automatic isolation,

solar version up to 130 °C,

measuring range: 0-6 bar / 0-10 bar

diameter: d = 50 mm

523210

2-way zone valve - DN 25 (1") for tank heat transfer module Midi

for connecting and disconnecting single storage tanks,

DN 25, 1" int. thread, setting time for 90°: 30 sec., Kvs value = 68

563542

2-way zone valve - DN 32 (11⁄4") for tank heat transfer module Maxi

for connecting and disconnecting single storage tanks,

DN 32, 1

1⁄4" internal thread, setting time for 90°: 30 sec., Kvs value = 123

563552

3-way zone valve - DN 25 (1")

for switching between single storage tanks,

DN 25, 1" int. thread, setting time for 90°: 18 sec., Kvs value =11

563543

3-way zone valve - DN 32 (11⁄4")

for switching between single storage tanks,

DN 32, 1

1⁄4" int. thread, setting time for 90°: 18 sec., Kvs value =15

can be used in solar and heating installations, to switch between different zones or to

connect and disconnect different parts of the system.

The actuator is equipped with a relay which is actuated by a 2-point signal, if need be it

can also be manually operated.

The 3-way zone valves can be operated in both directions.

Electric supply: 230 V / 50 Hz

Casing protection type: IP 44; protection class II

Input power: 3 VA (standby), 7.5 VA (operation)

Ambient temperature: -10 °C ...+60 °C

Medium temperature: 0 °C ...100 °C, short-term 115 °C

Equipment: with 1.8 m cable 4 x 0.5 mm2

563553
