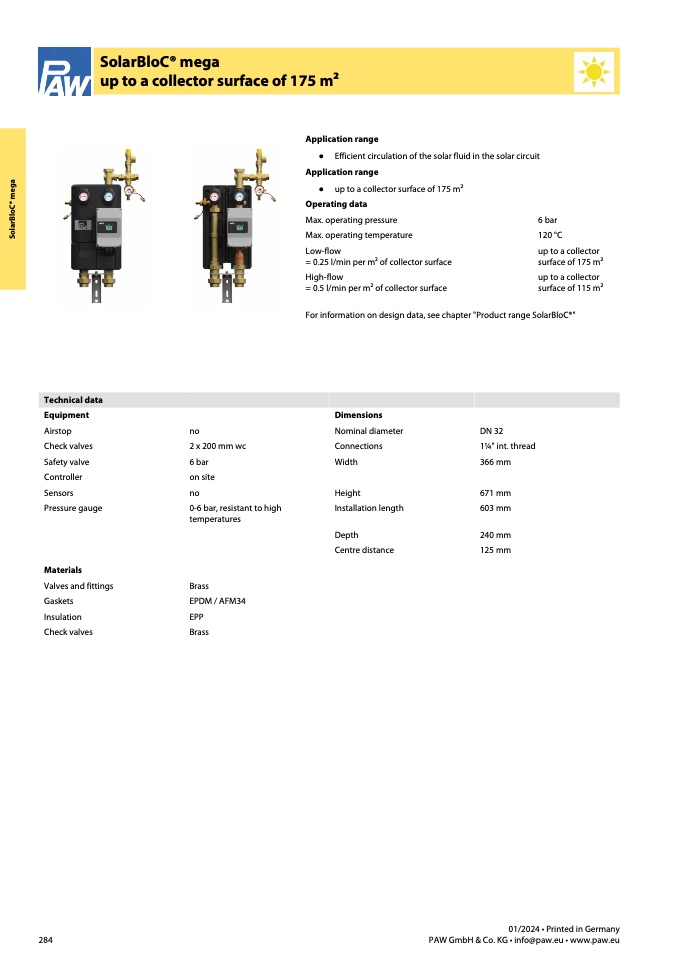

SolarBloC® mega

up to a collector surface of 175 m2

S

o

l

a

r

B

l

o

C

®

m

e

g

a

Technical data

Application range

● Efficient circulation of the solar fluid in the solar circuit

Application range

Equipment

Airstop

Check valves

Safety valve

Controller

Sensors

Pressure gauge

Materials

Valves and fittings

Gaskets

Insulation

Check valves

no

2 x 200 mm wc

6 bar

on site

no

0-6 bar, resistant to high

temperatures

Brass

EPDM / AFM34

EPP

Brass

Dimensions

Nominal diameter

Connections

Width

Height

Installation length

Depth

Centre distance

DN 32

11⁄4" int. thread

366 mm

671 mm

603 mm

240 mm

125 mm

284

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

● up to a collector surface of 175 m2

Operating data

Max. operating pressure

Max. operating temperature

Low-flow

= 0.25 l/min per m2 of collector surface

High-flow

= 0.5 l/min per m2 of collector surface

6 bar

120 °C

up to a collector

surface of 175 m2

up to a collector

surface of 115 m2

For information on design data, see chapter "Product range SolarBloC®"
