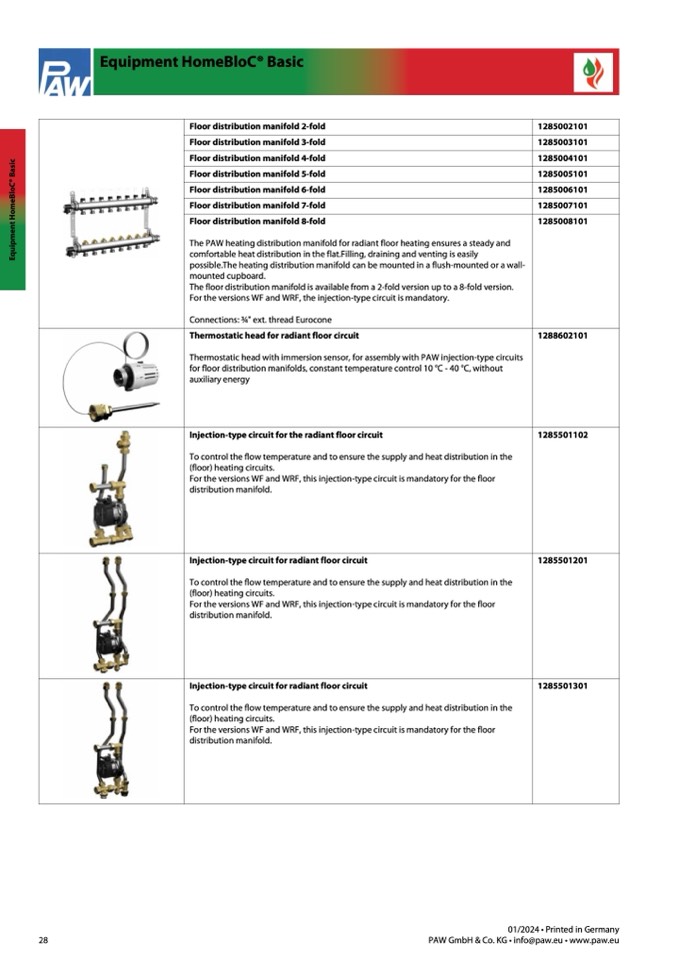

Equipment HomeBloC® Basic
Floor distribution manifold 8-fold
The PAW heating distribution manifold for radiant floor heating ensures a steady and
comfortable heat distribution in the flat.Filling, draining and venting is easily
possible.The heating distribution manifold can be mounted in a flush-mounted or a wall-
mounted cupboard.
The floor distribution manifold is available from a 2-fold version up to a 8-fold version.
For the versions WF and WRF, the injection-type circuit is mandatory.
Connections:
3⁄4" ext. thread Eurocone
1285008101
Thermostatic head for radiant floor circuit
Thermostatic head with immersion sensor, for assembly with PAW injection-type circuits
for floor distribution manifolds, constant temperature control 10 °C - 40 °C, without
auxiliary energy
1288602101
Injection-type circuit for the radiant floor circuit
To control the flow temperature and to ensure the supply and heat distribution in the
(floor) heating circuits.
For the versions WF and WRF, this injection-type circuit is mandatory for the floor
distribution manifold.
1285501102
Injection-type circuit for radiant floor circuit
To control the flow temperature and to ensure the supply and heat distribution in the
(floor) heating circuits.
For the versions WF and WRF, this injection-type circuit is mandatory for the floor
distribution manifold.
1285501201
Injection-type circuit for radiant floor circuit
To control the flow temperature and to ensure the supply and heat distribution in the
(floor) heating circuits.
For the versions WF and WRF, this injection-type circuit is mandatory for the floor
distribution manifold.
1285501301
E
q
u
i
p
m
e
n
t
H
o
m
e
B
l
o
C
®
B
a
s
i
c
Floor distribution manifold 2-fold
Floor distribution manifold 3-fold
Floor distribution manifold 4-fold
Floor distribution manifold 5-fold
Floor distribution manifold 6-fold
Floor distribution manifold 7-fold
1285002101
1285003101
1285004101
1285005101
1285006101
1285007101
