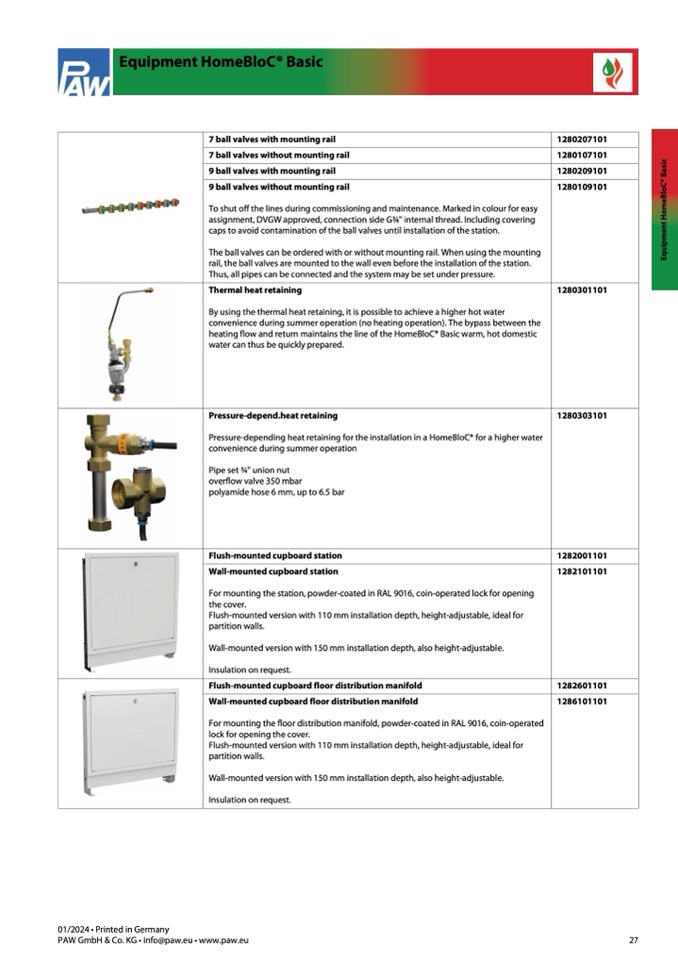

Equipment HomeBloC® Basic
7 ball valves with mounting rail
7 ball valves without mounting rail
9 ball valves with mounting rail
Flush-mounted cupboard station
Flush-mounted cupboard floor distribution manifold
01/2024 • Printed in Germany
PAW GmbH & Co. KG • info@paw.eu • www.paw.eu
1280207101
1280107101
1280209101
9 ball valves without mounting rail
To shut off the lines during commissioning and maintenance. Marked in colour for easy
assignment, DVGW approved, connection side G
3⁄4" internal thread. Including covering
caps to avoid contamination of the ball valves until installation of the station.
The ball valves can be ordered with or without mounting rail. When using the mounting
rail, the ball valves are mounted to the wall even before the installation of the station.
Thus, all pipes can be connected and the system may be set under pressure.
1280109101
Thermal heat retaining
By using the thermal heat retaining, it is possible to achieve a higher hot water
convenience during summer operation (no heating operation). The bypass between the
heating flow and return maintains the line of the HomeBloC® Basic warm, hot domestic
water can thus be quickly prepared.
1280301101
Pressure-depend.heat retaining
Pressure-depending heat retaining for the installation in a HomeBloC® for a higher water
convenience during summer operation
Pipe set
3⁄4" union nut
overflow valve 350 mbar
polyamide hose 6 mm, up to 6.5 bar
1280303101
1282001101
1282601101
Wall-mounted cupboard station
For mounting the station, powder-coated in RAL 9016, coin-operated lock for opening
the cover.
Flush-mounted version with 110 mm installation depth, height-adjustable, ideal for
partition walls.
Wall-mounted version with 150 mm installation depth, also height-adjustable.
Insulation on request.
1282101101
Wall-mounted cupboard floor distribution manifold
For mounting the floor distribution manifold, powder-coated in RAL 9016, coin-operated
lock for opening the cover.
Flush-mounted version with 110 mm installation depth, height-adjustable, ideal for
partition walls.
Wall-mounted version with 150 mm installation depth, also height-adjustable.
Insulation on request.
1286101101
27
