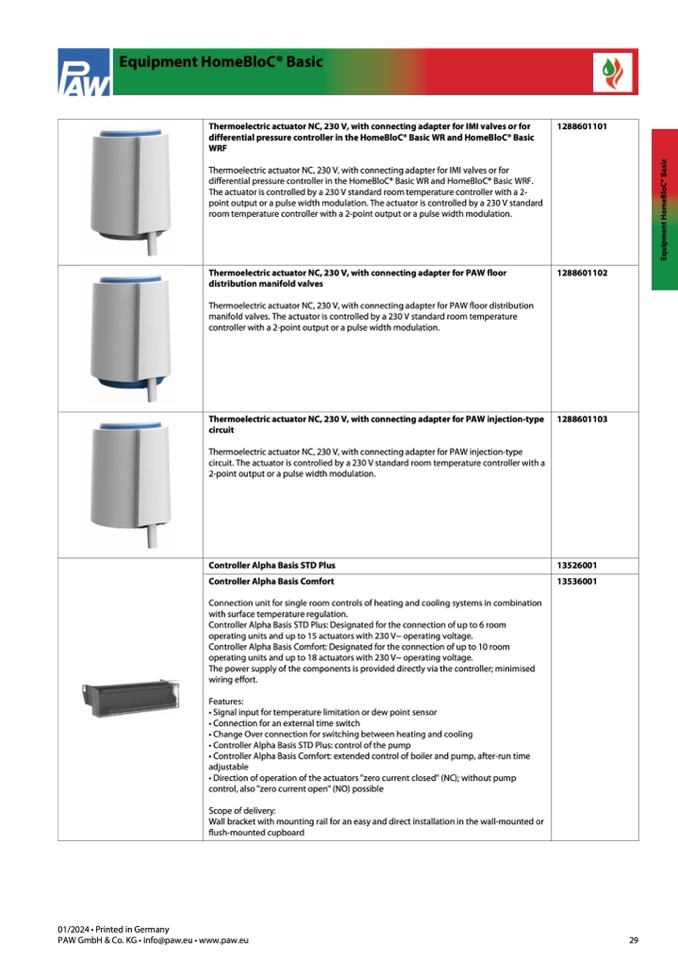

Equipment HomeBloC® Basic

Thermoelectric actuator NC, 230 V, with connecting adapter for IMI valves or for

differential pressure controller in the HomeBloC® Basic WR and HomeBloC® Basic

WRF

Thermoelectric actuator NC, 230 V, with connecting adapter for IMI valves or for

differential pressure controller in the HomeBloC® Basic WR and HomeBloC® Basic WRF.

The actuator is controlled by a 230 V standard room temperature controller with a 2-

point output or a pulse width modulation. The actuator is controlled by a 230 V standard

room temperature controller with a 2-point output or a pulse width modulation.

1288601101

Thermoelectric actuator NC, 230 V, with connecting adapter for PAW floor

distribution manifold valves

Thermoelectric actuator NC, 230 V, with connecting adapter for PAW floor distribution

manifold valves. The actuator is controlled by a 230 V standard room temperature

controller with a 2-point output or a pulse width modulation.

1288601102

Thermoelectric actuator NC, 230 V, with connecting adapter for PAW injection-type

circuit

Thermoelectric actuator NC, 230 V, with connecting adapter for PAW injection-type

circuit. The actuator is controlled by a 230 V standard room temperature controller with a

2-point output or a pulse width modulation.

1288601103

Controller Alpha Basis Comfort

Connection unit for single room controls of heating and cooling systems in combination

with surface temperature regulation.

Controller Alpha Basis STD Plus: Designated for the connection of up to 6 room

operating units and up to 15 actuators with 230 V~ operating voltage.

Controller Alpha Basis Comfort: Designated for the connection of up to 10 room

operating units and up to 18 actuators with 230 V~ operating voltage.

The power supply of the components is provided directly via the controller; minimised

wiring effort.

Features:

• Signal input for temperature limitation or dew point sensor

• Connection for an external time switch

• Change Over connection for switching between heating and cooling

• Controller Alpha Basis STD Plus: control of the pump

• Controller Alpha Basis Comfort: extended control of boiler and pump, after-run time

adjustable

• Direction of operation of the actuators "zero current closed" (NC); without pump

control, also "zero current open" (NO) possible

Scope of delivery:

Wall bracket with mounting rail for an easy and direct installation in the wall-mounted or

flush-mounted cupboard

13536001

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

29

Controller Alpha Basis STD Plus

13526001
