Paw - 01/2024

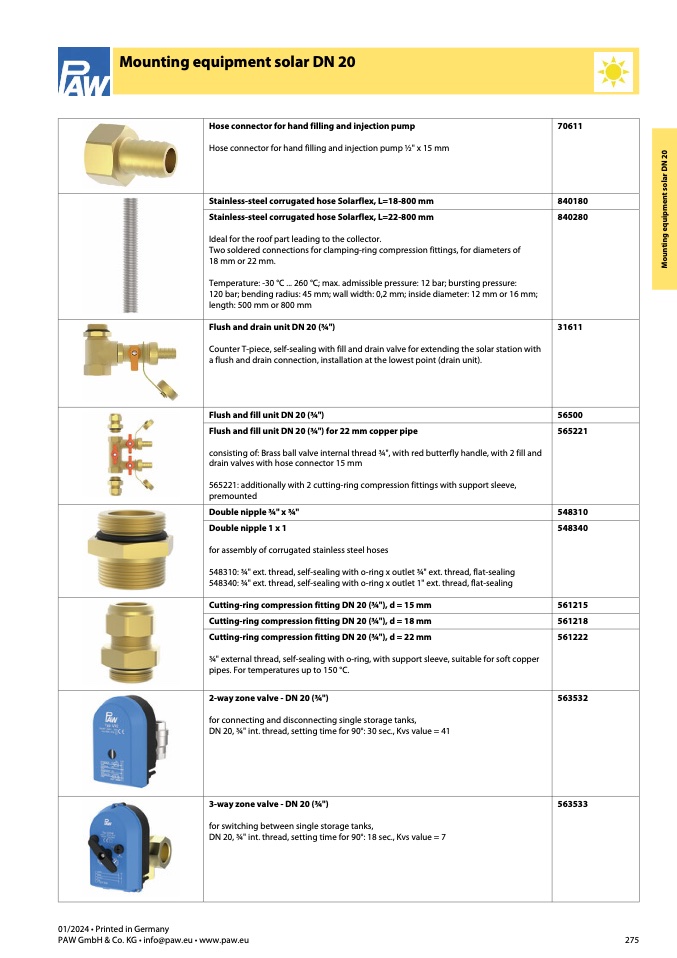

Mounting equipment solar DN 20

Hose connector for hand filling and injection pump

1⁄2" x 15 mm

70611

Stainless-steel corrugated hose Solarflex, L=18-800 mm

Flush and fill unit DN 20 (

3⁄4")

Double nipple 3⁄4" x

3⁄4"

Cutting-ring compression fitting DN 20 (3⁄4"), d = 15 mm

Cutting-ring compression fitting DN 20 (3⁄4"), d = 18 mm

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

840180

Stainless-steel corrugated hose Solarflex, L=22-800 mm

Ideal for the roof part leading to the collector.

Two soldered connections for clamping-ring compression fittings, for diameters of

18 mm or 22 mm.

Temperature: -30 °C ... 260 °C; max. admissible pressure: 12 bar; bursting pressure:

120 bar; bending radius: 45 mm; wall width: 0,2 mm; inside diameter: 12 mm or 16 mm;

length: 500 mm or 800 mm

840280

Flush and drain unit DN 20 (3⁄4")

Counter T-piece, self-sealing with fill and drain valve for extending the solar station with

a flush and drain connection, installation at the lowest point (drain unit).

31611

56500

548310

561215

561218

Flush and fill unit DN 20 (

3⁄4") for 22 mm copper pipe

consisting of: Brass ball valve internal thread 3⁄4", with red butterfly handle, with 2 fill and

drain valves with hose connector 15 mm

565221: additionally with 2 cutting-ring compression fittings with support sleeve,

premounted

565221

Double nipple 1 x 1

for assembly of corrugated stainless steel hoses

548310:

3⁄4" ext. thread, self-sealing with o-ring x outlet

3⁄4" ext. thread, flat-sealing

548340:

3⁄4" ext. thread, self-sealing with o-ring x outlet 1" ext. thread, flat-sealing

548340

Cutting-ring compression fitting DN 20 (3⁄4"), d = 22 mm

3⁄4" external thread, self-sealing with o-ring, with support sleeve, suitable for soft copper

pipes. For temperatures up to 150 °C.

561222

2-way zone valve - DN 20 (3⁄4")

for connecting and disconnecting single storage tanks,

DN 20,

3⁄4" int. thread, setting time for 90°: 30 sec., Kvs value = 41

563532

3-way zone valve - DN 20 (3⁄4")

for switching between single storage tanks,

DN 20,

3⁄4" int. thread, setting time for 90°: 18 sec., Kvs value = 7

563533
