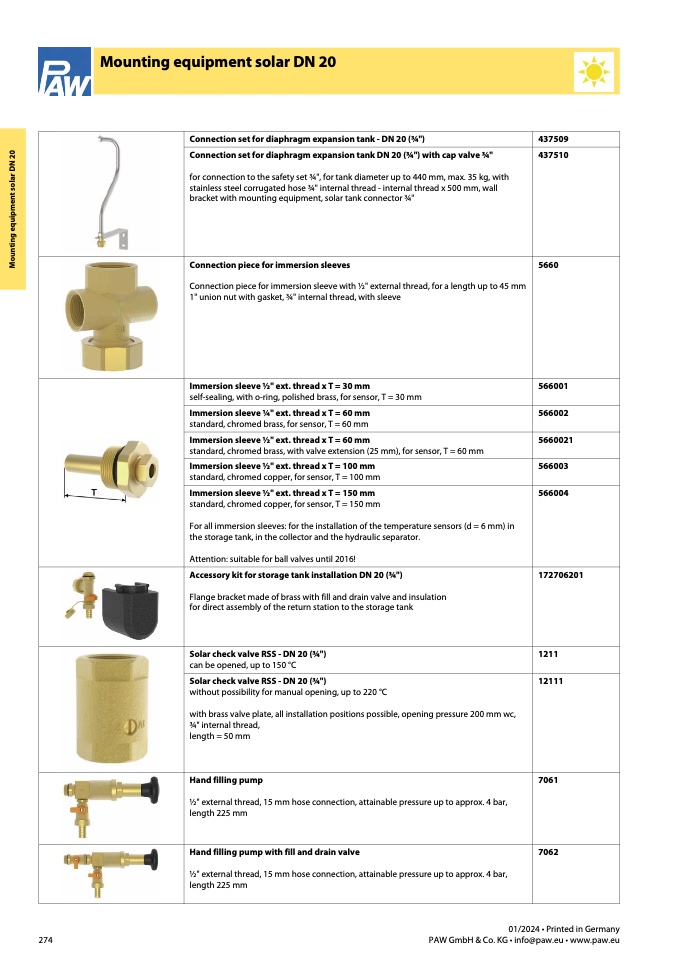

Mounting equipment solar DN 20

M

o

u

n

t

i

n

g

e

q

u

i

p

m

e

n

t

s

o

l

a

r

D

N

2

0

Connection set for diaphragm expansion tank DN 20 (

3⁄4") with cap valve 3⁄4"

for connection to the safety set

3⁄4", for tank diameter up to 440 mm, max. 35 kg, with

stainless steel corrugated hose

3⁄4" internal thread - internal thread x 500 mm, wall

bracket with mounting equipment, solar tank connector

3⁄4"

437510

Connection piece for immersion sleeves

Connection piece for immersion sleeve with 1⁄2" external thread, for a length up to 45 mm

1" union nut with gasket,

3⁄4" internal thread, with sleeve

5660

Immersion sleeve

1⁄2" ext. thread x T = 150 mm

standard, chromed copper, for sensor, T = 150 mm

For all immersion sleeves: for the installation of the temperature sensors (d = 6 mm) in

the storage tank, in the collector and the hydraulic separator.

Attention: suitable for ball valves until 2016!

566004

Accessory kit for storage tank installation DN 20 (

3⁄4")

Flange bracket made of brass with fill and drain valve and insulation

for direct assembly of the return station to the storage tank

172706201

Solar check valve RSS - DN 20 (

3⁄4")

without possibility for manual opening, up to 220 °C

with brass valve plate, all installation positions possible, opening pressure 200 mm wc,

3⁄4" internal thread,

length = 50 mm

12111

Hand filling pump

1⁄2" external thread, 15 mm hose connection, attainable pressure up to approx. 4 bar,

length 225 mm

7061

Hand filling pump with fill and drain valve

1⁄2" external thread, 15 mm hose connection, attainable pressure up to approx. 4 bar,

length 225 mm

7062

Connection set for diaphragm expansion tank - DN 20 (

3⁄4")

437509

Immersion sleeve

1⁄2" ext. thread x T = 30 mm

self-sealing, with o-ring, polished brass, for sensor, T = 30 mm

Immersion sleeve

1⁄4" ext. thread x T = 60 mm

standard, chromed brass, for sensor, T = 60 mm

Immersion sleeve

1⁄2" ext. thread x T = 60 mm

standard, chromed brass, with valve extension (25 mm), for sensor, T = 60 mm

Immersion sleeve

1⁄2" ext. thread x T = 100 mm

standard, chromed copper, for sensor, T = 100 mm

566001

566002

5660021

566003

274

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

Solar check valve RSS - DN 20 (

3⁄4")

can be opened, up to 150 °C

1211
