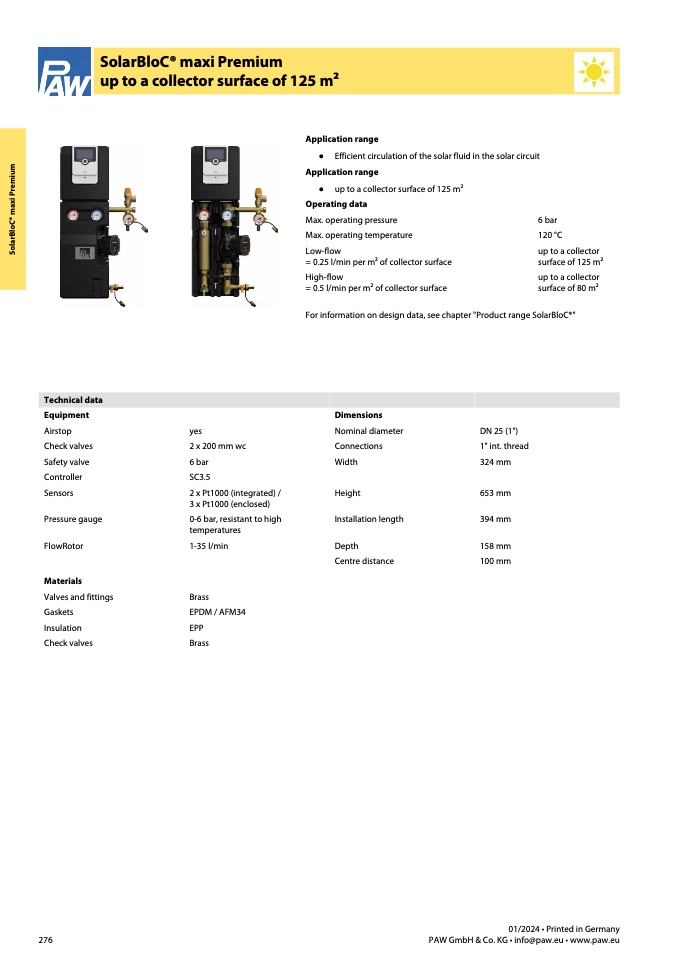

SolarBloC® maxi Premium

up to a collector surface of 125 m2

S

o

l

a

r

B

l

o

C

®

m

a

x

i

P

r

e

m

i

u

m

Technical data

Application range

● Efficient circulation of the solar fluid in the solar circuit

Application range

Equipment

Airstop

Check valves

Safety valve

Controller

Sensors

Pressure gauge

FlowRotor

Materials

Valves and fittings

Gaskets

Insulation

Check valves

yes

2 x 200 mm wc

6 bar

SC3.5

2 x Pt1000 (integrated) /

3 x Pt1000 (enclosed)

0-6 bar, resistant to high

temperatures

1-35 l/min

Brass

EPDM / AFM34

EPP

Brass

Dimensions

Nominal diameter

Connections

Width

Height

Installation length

Depth

Centre distance

DN 25 (1")

1" int. thread

324 mm

653 mm

394 mm

158 mm

100 mm

276

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

● up to a collector surface of 125 m2

Operating data

Max. operating pressure

Max. operating temperature

Low-flow

= 0.25 l/min per m2 of collector surface

High-flow

= 0.5 l/min per m2 of collector surface

6 bar

120 °C

up to a collector

surface of 125 m2

up to a collector

surface of 80 m2

For information on design data, see chapter "Product range SolarBloC®"
