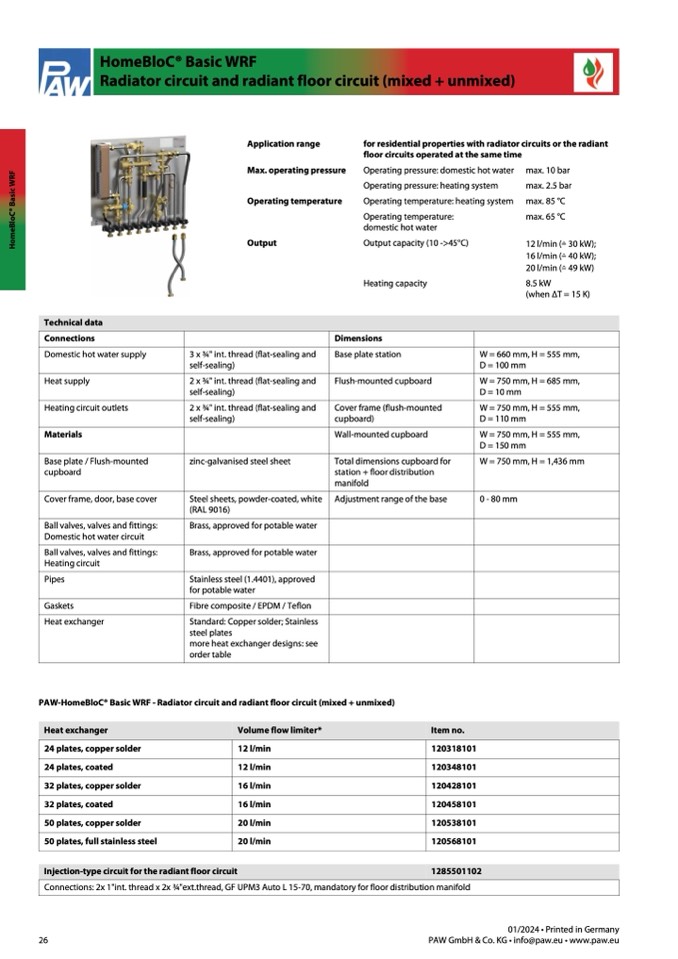

HomeBloC® Basic WRF

Radiator circuit and radiant floor circuit (mixed + unmixed)

H

o

m

e

B

l

o

C

®

B

a

s

i

c

W

R

F

Technical data

Base plate / Flush-mounted

cupboard

zinc-galvanised steel sheet

Total dimensions cupboard for

station + floor distribution

manifold

W = 750 mm, H = 1,436 mm

Heat exchanger

Standard: Copper solder; Stainless

steel plates

more heat exchanger designs: see

order table

Heat exchanger

Injection-type circuit for the radiant floor circuit

Connections

Domestic hot water supply

Heat supply

Heating circuit outlets

Materials

Cover frame, door, base cover

Ball valves, valves and fittings:

Domestic hot water circuit

Ball valves, valves and fittings:

Heating circuit

Pipes

Gaskets

3 x

3⁄4" int. thread (flat-sealing and

self-sealing)

2 x

3⁄4" int. thread (flat-sealing and

self-sealing)

2 x

3⁄4" int. thread (flat-sealing and

self-sealing)

Steel sheets, powder-coated, white

(RAL 9016)

Brass, approved for potable water

Brass, approved for potable water

Stainless steel (1.4401), approved

for potable water

Fibre composite / EPDM / Teflon

domestic hot water

Output capacity (10 ->45°C)

Heating capacity

Dimensions

Base plate station

Flush-mounted cupboard

Cover frame (flush-mounted

cupboard)

Wall-mounted cupboard

Adjustment range of the base

max. 10 bar

max. 2.5 bar

max. 85 °C

max. 65 °C

12 l/min (≙ 30 kW);

16 l/min (≙ 40 kW);

20 l/min (≙ 49 kW)

8.5 kW

(when ΔT = 15 K)

W = 660 mm, H = 555 mm,

D = 100 mm

W = 750 mm, H = 685 mm,

D = 10 mm

W = 750 mm, H = 555 mm,

D = 110 mm

W = 750 mm, H = 555 mm,

D = 150 mm

0 - 80 mm

Application range

Max. operating pressure

Operating temperature

Output

for residential properties with radiator circuits or the radiant

floor circuits operated at the same time

Operating pressure: domestic hot water

Operating pressure: heating system

Operating temperature: heating system

Operating temperature:

PAW-HomeBloC® Basic WRF - Radiator circuit and radiant floor circuit (mixed + unmixed)

Volume flow limiter*

Item no.

120318101

120348101

120428101

120458101

120538101

120568101

24 plates, copper solder

24 plates, coated

32 plates, copper solder

32 plates, coated

50 plates, copper solder

50 plates, full stainless steel

12 l/min

12 l/min

16 l/min

16 l/min

20 l/min

20 l/min

Connections: 2x 1"int. thread x 2x 3⁄4"ext.thread, GF UPM3 Auto L 15-70, mandatory for floor distribution manifold

01/2024 • Printed in Germany

26

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

1285501102
