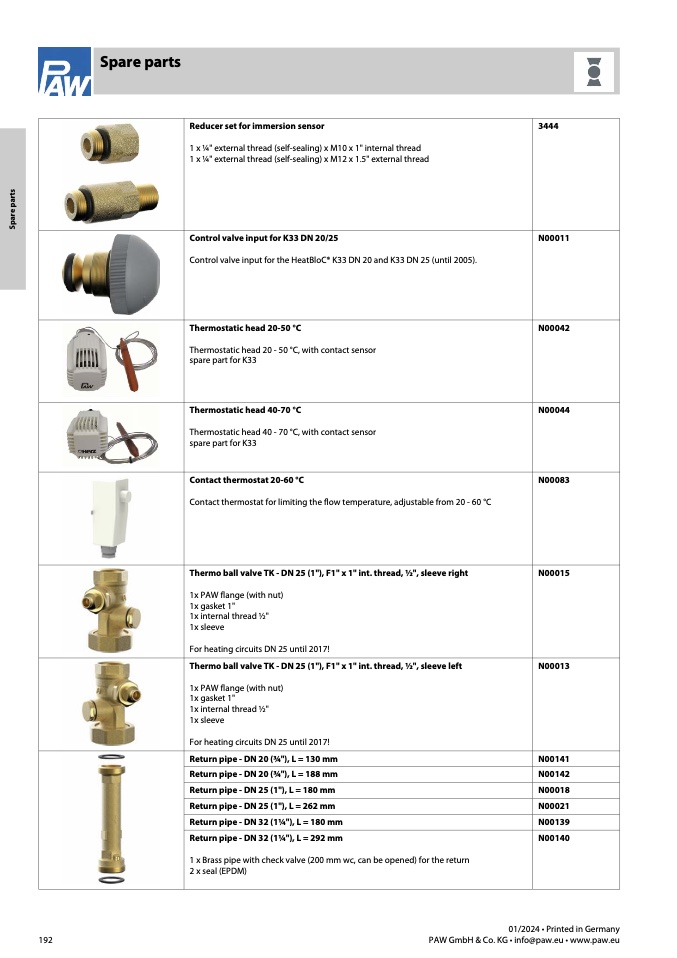

Spare parts

Reducer set for immersion sensor

1 x

1⁄4" external thread (self-sealing) x M10 x 1" internal thread

1 x

1⁄4" external thread (self-sealing) x M12 x 1.5" external thread

3444

Control valve input for K33 DN 20/25

Control valve input for the HeatBloC® K33 DN 20 and K33 DN 25 (until 2005).

N00011

Thermostatic head 20-50 °C

Thermostatic head 20 - 50 °C, with contact sensor

spare part for K33

N00042

Thermostatic head 40-70 °C

Thermostatic head 40 - 70 °C, with contact sensor

spare part for K33

N00044

Contact thermostat 20-60 °C

Contact thermostat for limiting the flow temperature, adjustable from 20 - 60 °C

N00083

Thermo ball valve TK - DN 25 (1"), F1" x 1" int. thread,

1⁄2", sleeve right

1x PAW flange (with nut)

1x gasket 1"

1x internal thread

1⁄2"

1x sleeve

For heating circuits DN 25 until 2017!

N00015

Thermo ball valve TK - DN 25 (1"), F1" x 1" int. thread,

1⁄2", sleeve left

1x PAW flange (with nut)

1x gasket 1"

1x internal thread

1⁄2"

1x sleeve

For heating circuits DN 25 until 2017!

N00013

Return pipe - DN 32 (1

1⁄4"), L = 292 mm

1 x Brass pipe with check valve (200 mm wc, can be opened) for the return

2 x seal (EPDM)

N00140

S

p

a

r

e

p

a

r

t

s

Return pipe - DN 20 (3⁄4"), L = 130 mm

Return pipe - DN 20 (3⁄4"), L = 188 mm

Return pipe - DN 25 (1"), L = 180 mm

Return pipe - DN 25 (1"), L = 262 mm

Return pipe - DN 32 (1

1⁄4"), L = 180 mm

N00141

N00142

N00018

N00021

N00139

01/2024 • Printed in Germany
