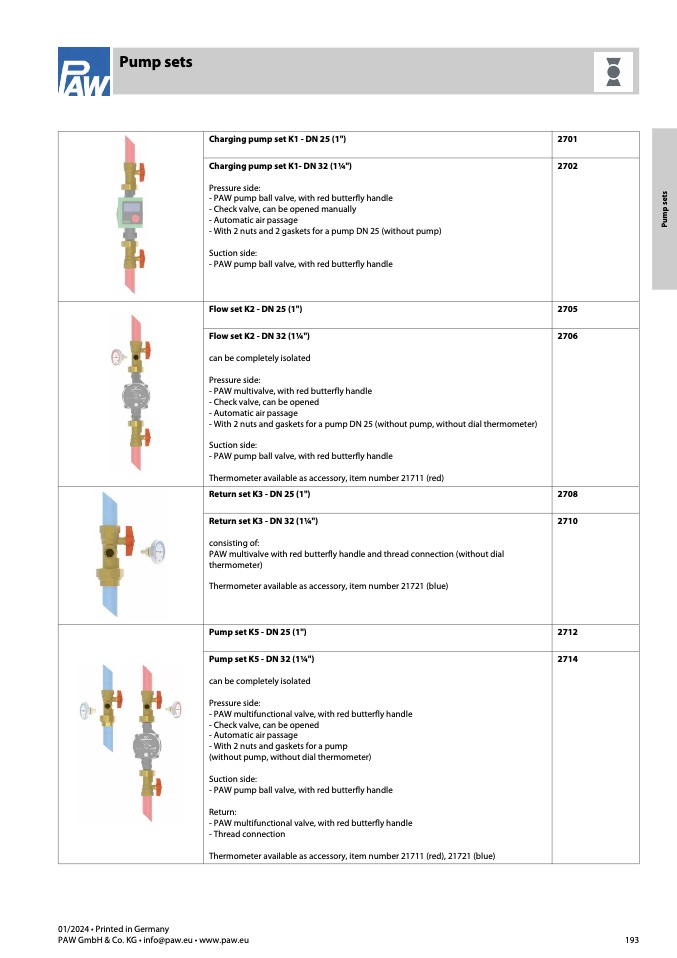

Pump sets

Charging pump set K1 - DN 25 (1")

Flow set K2 - DN 25 (1")

Return set K3 - DN 25 (1")

Pump set K5 - DN 25 (1")

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

2701

Charging pump set K1- DN 32 (1

1⁄4")

Pressure side:

- PAW pump ball valve, with red butterfly handle

- Check valve, can be opened manually

- Automatic air passage

- With 2 nuts and 2 gaskets for a pump DN 25 (without pump)

Suction side:

- PAW pump ball valve, with red butterfly handle

2702

2705

Flow set K2 - DN 32 (1

1⁄4")

can be completely isolated

Pressure side:

- PAW multivalve, with red butterfly handle

- Check valve, can be opened

- Automatic air passage

- With 2 nuts and gaskets for a pump DN 25 (without pump, without dial thermometer)

Suction side:

- PAW pump ball valve, with red butterfly handle

Thermometer available as accessory, item number 21711 (red)

2706

2708

2712

Return set K3 - DN 32 (1

1⁄4")

consisting of:

PAW multivalve with red butterfly handle and thread connection (without dial

thermometer)

Thermometer available as accessory, item number 21721 (blue)

2710

Pump set K5 - DN 32 (11⁄4")

can be completely isolated

Pressure side:

- PAW multifunctional valve, with red butterfly handle

- Check valve, can be opened

- Automatic air passage

- With 2 nuts and gaskets for a pump

(without pump, without dial thermometer)

Suction side:

- PAW pump ball valve, with red butterfly handle

Return:

- PAW multifunctional valve, with red butterfly handle

- Thread connection

Thermometer available as accessory, item number 21711 (red), 21721 (blue)

2714
