Paw - 01/2024

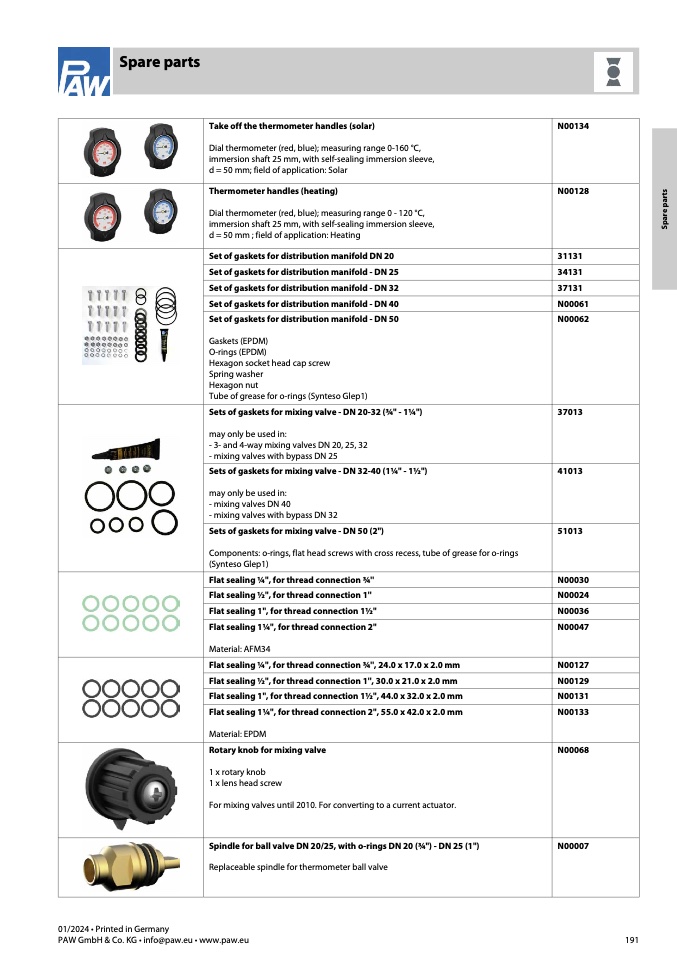

Spare parts

Take off the thermometer handles (solar)

Dial thermometer (red, blue); measuring range 0-160 °C,

immersion shaft 25 mm, with self-sealing immersion sleeve,

d = 50 mm; field of application: Solar

N00134

Thermometer handles (heating)

Dial thermometer (red, blue); measuring range 0 - 120 °C,

immersion shaft 25 mm, with self-sealing immersion sleeve,

d = 50 mm ; field of application: Heating

N00128

Set of gaskets for distribution manifold DN 20

Set of gaskets for distribution manifold - DN 25

Set of gaskets for distribution manifold - DN 32

Set of gaskets for distribution manifold - DN 40

Flat sealing

1⁄4'', for thread connection 3⁄4''

Flat sealing

1⁄2'', for thread connection 1''

Flat sealing 1'', for thread connection 11⁄2''

Flat sealing

1⁄4'', for thread connection 3⁄4'', 24.0 x 17.0 x 2.0 mm

Flat sealing

1⁄2'', for thread connection 1'', 30.0 x 21.0 x 2.0 mm

Flat sealing 1'', for thread connection 11⁄2'', 44.0 x 32.0 x 2.0 mm

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

31131

34131

37131

N00061

Set of gaskets for distribution manifold - DN 50

Gaskets (EPDM)

O-rings (EPDM)

Hexagon socket head cap screw

Spring washer

Hexagon nut

Tube of grease for o-rings (Synteso Glep1)

N00062

Sets of gaskets for mixing valve - DN 20-32 (3⁄4" - 1

1⁄4")

may only be used in:

- 3- and 4-way mixing valves DN 20, 25, 32

- mixing valves with bypass DN 25

37013

Sets of gaskets for mixing valve - DN 32-40 (11⁄4" - 1

1⁄2")

may only be used in:

- mixing valves DN 40

- mixing valves with bypass DN 32

41013

Sets of gaskets for mixing valve - DN 50 (2")

Components: o-rings, flat head screws with cross recess, tube of grease for o-rings

(Synteso Glep1)

51013

N00030

N00024

N00036

N00127

N00129

N00131

Flat sealing 1

1⁄4'', for thread connection 2''

Material: AFM34

N00047

Flat sealing 1

1⁄4'', for thread connection 2'', 55.0 x 42.0 x 2.0 mm

Material: EPDM

N00133

Rotary knob for mixing valve

1 x rotary knob

1 x lens head screw

For mixing valves until 2010. For converting to a current actuator.

N00068

Spindle for ball valve DN 20/25, with o-rings DN 20 (

3⁄4") - DN 25 (1")

Replaceable spindle for thermometer ball valve

N00007
