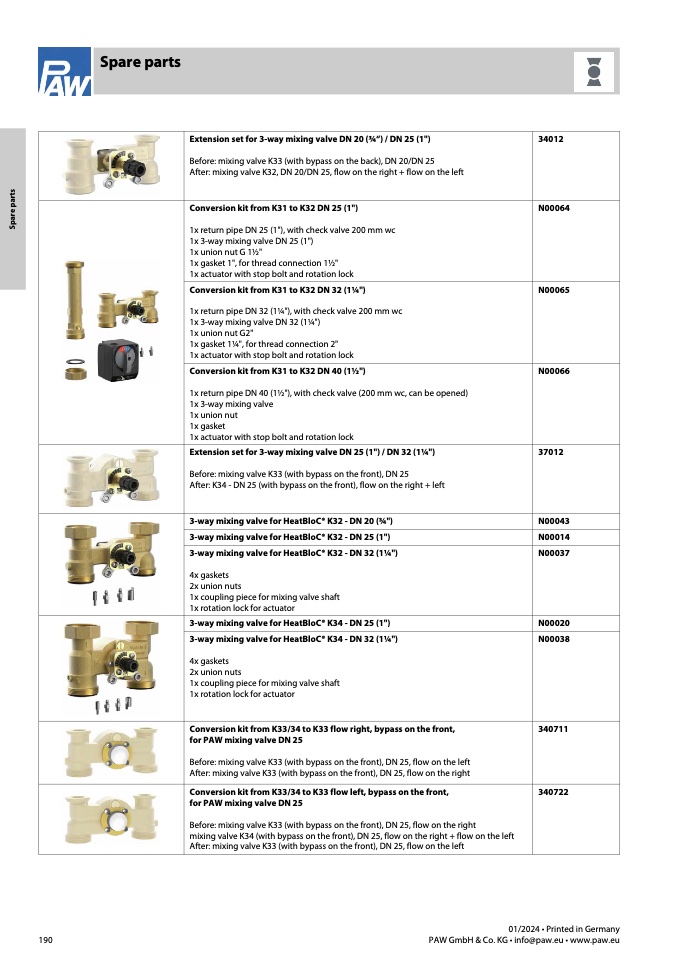

Extension set for 3-way mixing valve DN 20 (

3⁄4“) / DN 25 (1")

Before: mixing valve K33 (with bypass on the back), DN 20/DN 25

After: mixing valve K32, DN 20/DN 25, flow on the right + flow on the left

34012

Conversion kit from K31 to K32 DN 25 (1")

1x return pipe DN 25 (1"), with check valve 200 mm wc

1x 3-way mixing valve DN 25 (1")

1x union nut G 1

1⁄2"

1x gasket 1", for thread connection 1

1⁄2"

1x actuator with stop bolt and rotation lock

Extension set for 3-way mixing valve DN 25 (1") / DN 32 (1

1⁄4")

Before: mixing valve K33 (with bypass on the front), DN 25

After: K34 - DN 25 (with bypass on the front), flow on the right + left

N00064

Conversion kit from K31 to K32 DN 32 (1

1⁄4")

1x return pipe DN 32 (1

1⁄4"), with check valve 200 mm wc

1x 3-way mixing valve DN 32 (11⁄4")

1x union nut G2"

1x gasket 1

1⁄4", for thread connection 2"

1x actuator with stop bolt and rotation lock

N00065

Conversion kit from K31 to K32 DN 40 (1

1⁄2")

1x return pipe DN 40 (1

1⁄2"), with check valve (200 mm wc, can be opened)

1x 3-way mixing valve

1x union nut

1x gasket

1x actuator with stop bolt and rotation lock

N00066

37012

3-way mixing valve for HeatBloC® K32 - DN 32 (11⁄4")

4x gaskets

2x union nuts

1x coupling piece for mixing valve shaft

1x rotation lock for actuator

N00037

3-way mixing valve for HeatBloC® K34 - DN 32 (11⁄4")

4x gaskets

2x union nuts

1x coupling piece for mixing valve shaft

1x rotation lock for actuator

N00038

Conversion kit from K33/34 to K33 flow right, bypass on the front,

for PAW mixing valve DN 25

Before: mixing valve K33 (with bypass on the front), DN 25, flow on the left

After: mixing valve K33 (with bypass on the front), DN 25, flow on the right

340711

Conversion kit from K33/34 to K33 flow left, bypass on the front,

for PAW mixing valve DN 25

Before: mixing valve K33 (with bypass on the front), DN 25, flow on the right

mixing valve K34 (with bypass on the front), DN 25, flow on the right + flow on the left

After: mixing valve K33 (with bypass on the front), DN 25, flow on the left

340722

3-way mixing valve for HeatBloC® K32 - DN 20 (3⁄4")

3-way mixing valve for HeatBloC® K32 - DN 25 (1")

3-way mixing valve for HeatBloC® K34 - DN 25 (1")

N00043

N00014

N00020
