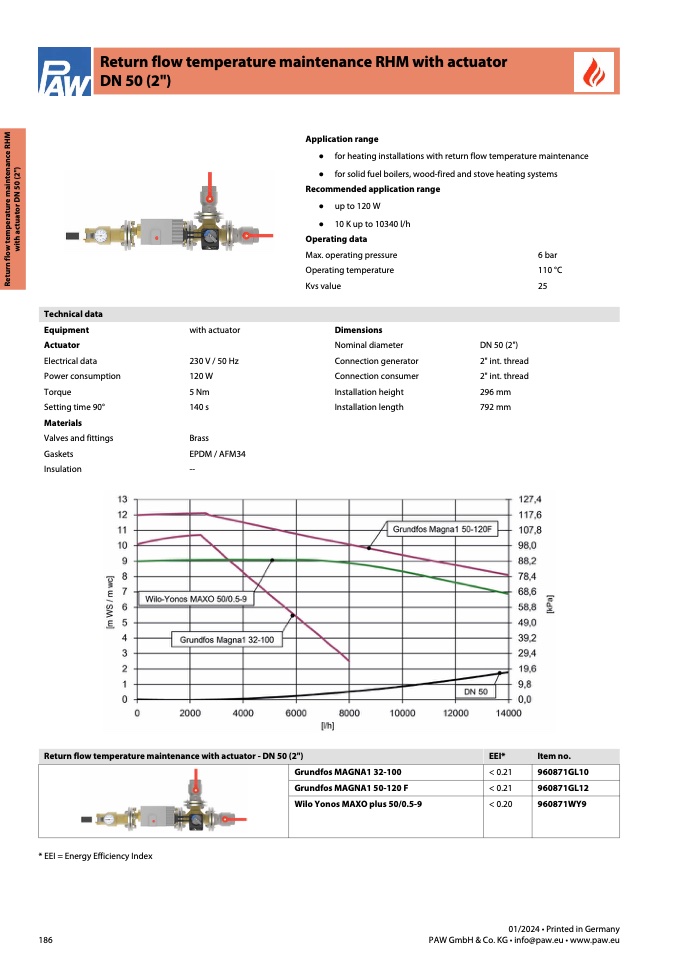

Return flow temperature maintenance RHM with actuator

DN 50 (2")

R

e

t

u

r

n

f

l

o

w

t

e

m

p

e

r

a

t

u

r

e

m

a

i

n

t

e

n

a

n

c

e

R

H

M

w

i

t

h

a

c

t

u

a

t

o

r

D

N

5

0

(

2

"

)

Technical data

Return flow temperature maintenance with actuator - DN 50 (2")

Wilo Yonos MAXO plus 50/0.5-9

< 0.20

960871WY9

Application range

● for heating installations with return flow temperature maintenance

● for solid fuel boilers, wood-fired and stove heating systems

Recommended application range

Equipment

Actuator

Electrical data

Power consumption

Torque

Setting time 90°

Materials

Valves and fittings

Gaskets

Insulation

with actuator

230 V / 50 Hz

120 W

5 Nm

140 s

Brass

EPDM / AFM34

--

Dimensions

Nominal diameter

Connection generator

Connection consumer

Installation height

Installation length

DN 50 (2")

2" int. thread

2" int. thread

296 mm

792 mm

● up to 120 W

● 10 K up to 10340 l/h

Operating data

Max. operating pressure

Operating temperature

Kvs value

6 bar

110 °C

25

Grundfos

Grundfos

MAGNA1 32-100

MAGNA1 50-120 F

EEI*

< 0.21

< 0.21

Item no.

960871GL10

960871GL12

* EEI = Energy Efficiency Index

186

01/2024 • Printed in Germany
