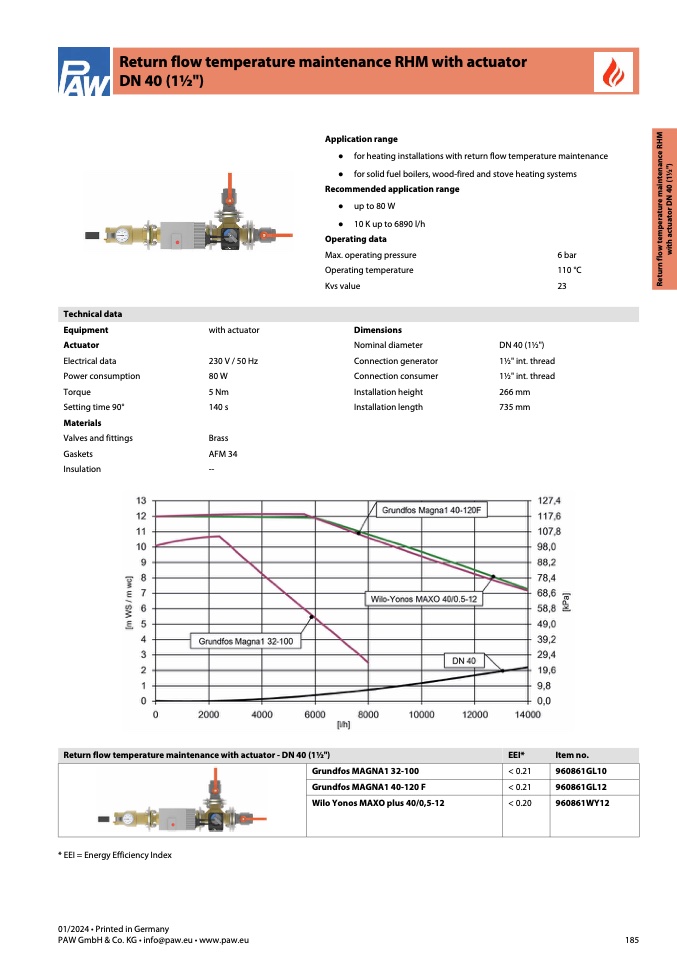

Application range

● for heating installations with return flow temperature maintenance

● for solid fuel boilers, wood-fired and stove heating systems

Recommended application range

Technical data

Equipment

Actuator

Electrical data

Power consumption

Torque

Setting time 90°

Materials

Valves and fittings

Gaskets

Insulation

with actuator

230 V / 50 Hz

80 W

5 Nm

140 s

Brass

AFM 34

--

● up to 80 W

● 10 K up to 6890 l/h

Operating data

Max. operating pressure

Operating temperature

Kvs value

Dimensions

Nominal diameter

Connection generator

Connection consumer

Installation height

Installation length

6 bar

110 °C

23

DN 40 (11⁄2")

11⁄2" int. thread

11⁄2" int. thread

266 mm

735 mm

Return flow temperature maintenance with actuator - DN 40 (11⁄2")

Wilo Yonos MAXO plus 40/0,5-12

< 0.20

960861WY12

Grundfos MAGNA1 32-100

Grundfos MAGNA1 40-120 F

EEI*

< 0.21

< 0.21

Item no.

960861GL10

960861GL12

* EEI = Energy Efficiency Index

Return flow temperature maintenance RHM with actuator

DN 40 (1

1⁄2")

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

185
