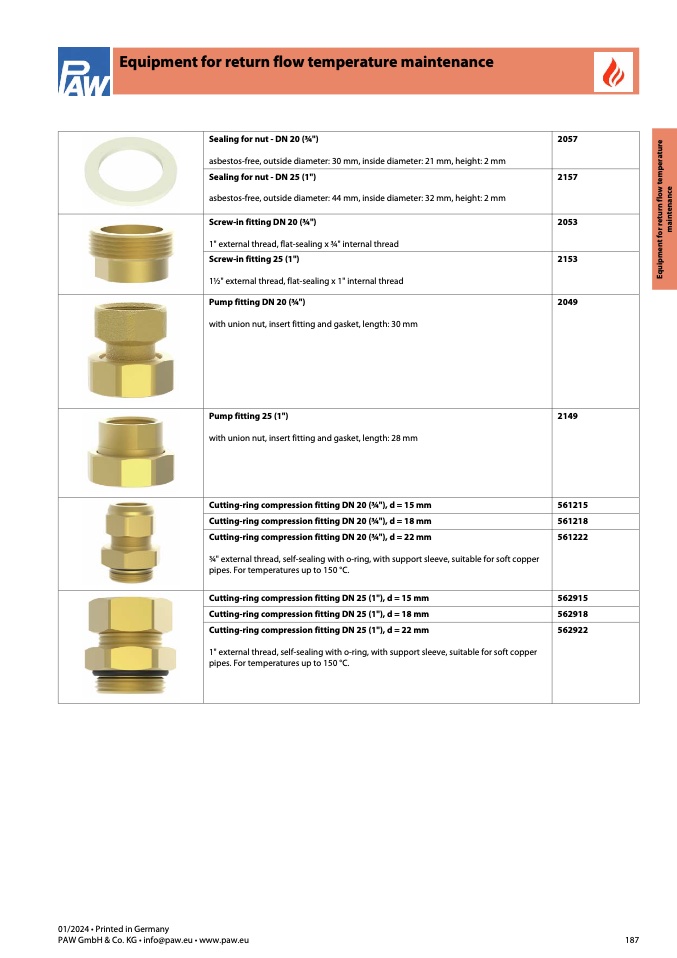

Equipment for return flow temperature maintenance

Sealing for nut - DN 20 (

3⁄4")

asbestos-free, outside diameter: 30 mm, inside diameter: 21 mm, height: 2 mm

2057

Sealing for nut - DN 25 (1")

asbestos-free, outside diameter: 44 mm, inside diameter: 32 mm, height: 2 mm

2157

Screw-in fitting DN 20 (

3⁄4")

1" external thread, flat-sealing x 3⁄4" internal thread

2053

Screw-in fitting 25 (1")

11⁄2" external thread, flat-sealing x 1" internal thread

2153

Pump fitting DN 20 (3⁄4")

with union nut, insert fitting and gasket, length: 30 mm

2049

Pump fitting 25 (1")

with union nut, insert fitting and gasket, length: 28 mm

2149

Cutting-ring compression fitting DN 20 (3⁄4"), d = 15 mm

Cutting-ring compression fitting DN 20 (3⁄4"), d = 18 mm

Cutting-ring compression fitting DN 25 (1"), d = 15 mm

Cutting-ring compression fitting DN 25 (1"), d = 18 mm

561215

561218

562915

562918

Cutting-ring compression fitting DN 20 (3⁄4"), d = 22 mm

3⁄4" external thread, self-sealing with o-ring, with support sleeve, suitable for soft copper

pipes. For temperatures up to 150 °C.

561222

Cutting-ring compression fitting DN 25 (1"), d = 22 mm

1" external thread, self-sealing with o-ring, with support sleeve, suitable for soft copper

pipes. For temperatures up to 150 °C.

562922
