Application range

● for heating installations with return flow temperature maintenance

● for solid fuel boilers, wood-fired and stove heating systems

Recommended application range

● up to 31 W

● 10 K up to 2670 l/h

Operating data

Max. operating pressure

Operating temperature

Kvs value

Dimensions

Nominal diameter

Connection generator

Connection consumer

Installation height

Installation length

6 bar

110 °C

10

Technical data

Equipment

Actuator

Electrical data

Power consumption

Torque

Setting time 90°

Materials

Valves and fittings

Gaskets

Insulation

with actuator

230 V / 50 Hz

31 W

5 Nm

140 s

Brass

AFM 34

EPP

DN 25 (1")

1" int. thread

1" int. thread

187 mm

437 mm

Return flow temperature maintenance with actuator - DN 25 (1")

Grundfos ALPHA2.1 25-60

Grundfos UPM3 Auto L 25-70

Grundfos UPML 25-105 AUTO

Wilo Para SC 25/6-43

Wilo Para SC 25/8-60/O

Wilo Yonos PICO 25/1-6

EEI*

< 0.17

< 0.20

< 0.23

< 0.20

< 0.20

< 0.20

Item no.

960841GH6

960841GM6

960841GL9

960841WP6

960841WP8

960841WN06

* EEI = Energy Efficiency Index

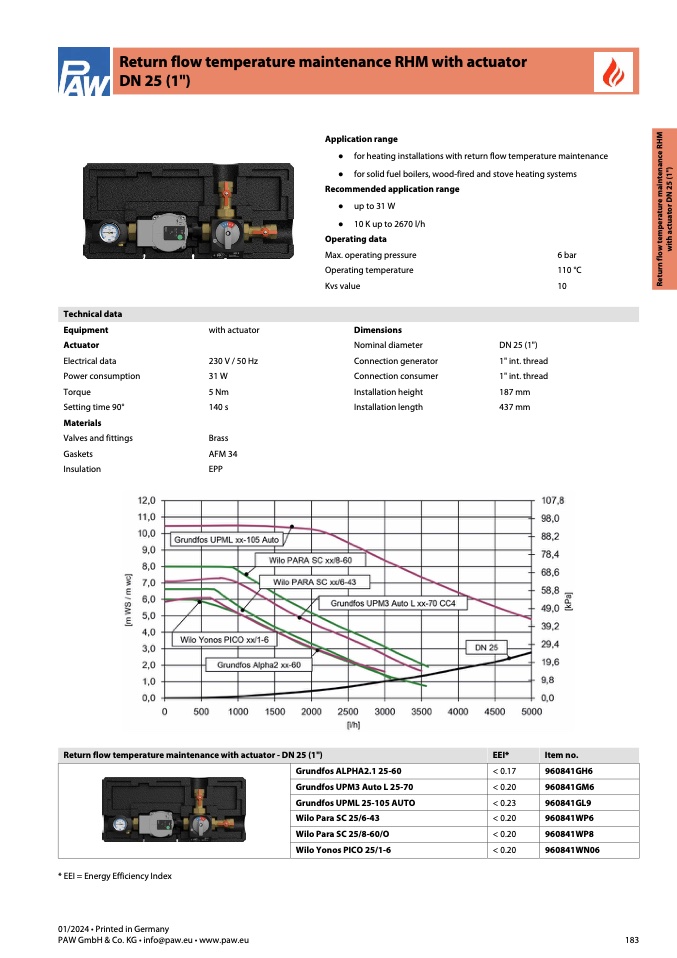

Return flow temperature maintenance RHM with actuator

DN 25 (1")
