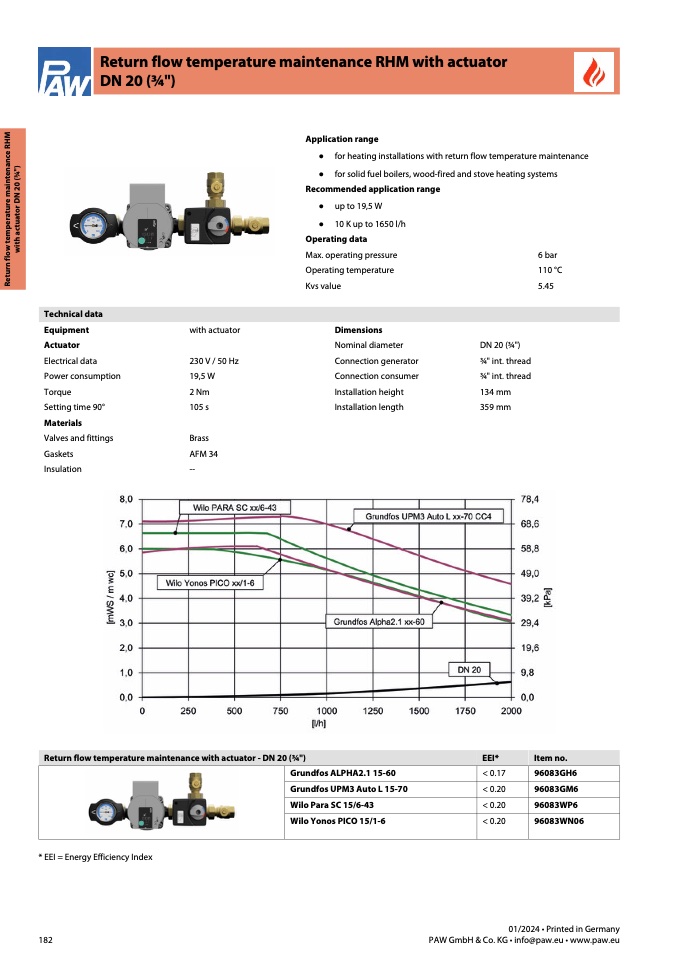

Return flow temperature maintenance RHM with actuator

DN 20 (3⁄4")

R

e

t

u

r

n

f

l

o

w

t

e

m

p

e

r

a

t

u

r

e

m

a

i

n

t

e

n

a

n

c

e

R

H

M

w

i

t

h

a

c

t

u

a

t

o

r

D

N

2

0

(

3⁄

4

"

)

Technical data

Return flow temperature maintenance with actuator - DN 20 (

3⁄4")

Application range

● for heating installations with return flow temperature maintenance

● for solid fuel boilers, wood-fired and stove heating systems

Recommended application range

Equipment

Actuator

Electrical data

Power consumption

Torque

Setting time 90°

Materials

Valves and fittings

Gaskets

Insulation

with actuator

230 V / 50 Hz

19,5 W

2 Nm

105 s

Brass

AFM 34

--

● up to 19,5 W

● 10 K up to 1650 l/h

Operating data

Max. operating pressure

Operating temperature

Kvs value

Dimensions

Nominal diameter

Connection generator

Connection consumer

Installation height

Installation length

6 bar

110 °C

5.45

DN 20 (3⁄4")

3⁄4" int. thread

3⁄4" int. thread

134 mm

359 mm

Grundfos ALPHA2.1 15-60

Grundfos UPM3 Auto L 15-70

Wilo Para SC 15/6-43

Wilo Yonos PICO 15/1-6

EEI*

< 0.17

< 0.20

< 0.20

< 0.20

Item no.

96083GH6

96083GM6

96083WP6

96083WN06

* EEI = Energy Efficiency Index

182

01/2024 • Printed in Germany
