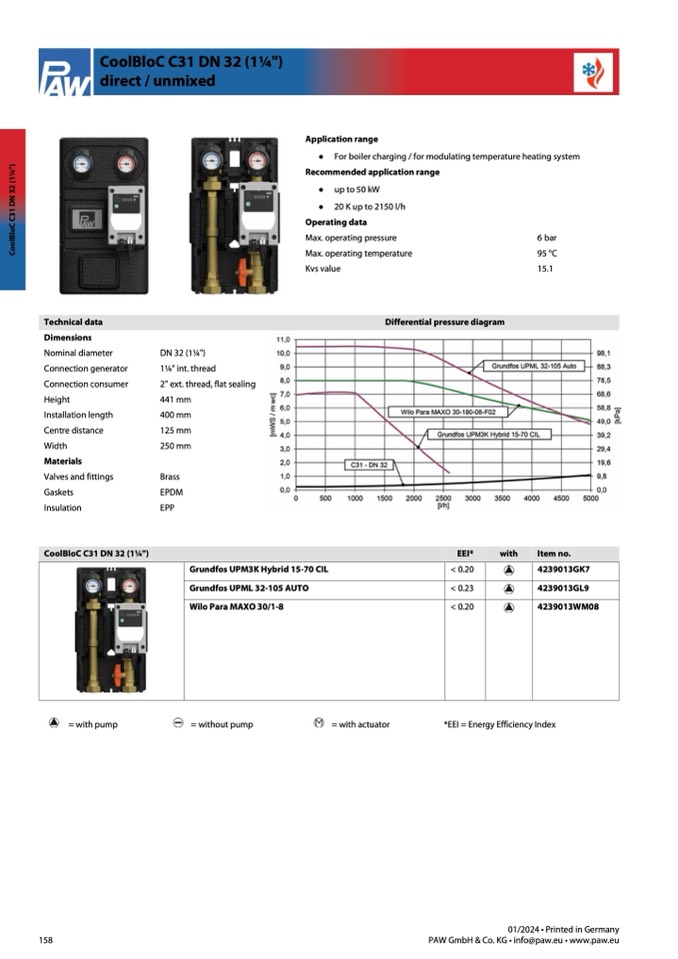

CoolBloC C31 DN 32 (1

1⁄4")

direct / unmixed

C

o

o

l

B

l

o

C

C

3

1

D

N

3

2

(

1

1⁄

4

"

)

Technical data

CoolBloC C31 DN 32 (1

1⁄4")

Wilo Para MAXO 30/1-8

< 0.20

4239013WM08

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

Materials

Valves and fittings

Gaskets

Insulation

DN 32 (1

1⁄4")

1

1⁄4" int. thread

2" ext. thread, flat sealing

441 mm

400 mm

125 mm

250 mm

Brass

EPDM

EPP

Application range

● For boiler charging / for modulating temperature heating system

Recommended application range

● up to 50 kW

● 20 K up to 2150 l/h

Operating data

Max. operating pressure

Max. operating temperature

Kvs value

6 bar

95 °C

15.1

Differential pressure diagram

EEI*

< 0.20

< 0.23

with

Item no.

4239013GK7

4239013GL9

158

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

= with pump

Grundfos UPM3K Hybrid 15-70 CIL

Grundfos UPML 32-105 AUTO

= without pump

= with actuator

*EEI = Energy Efficiency Index
