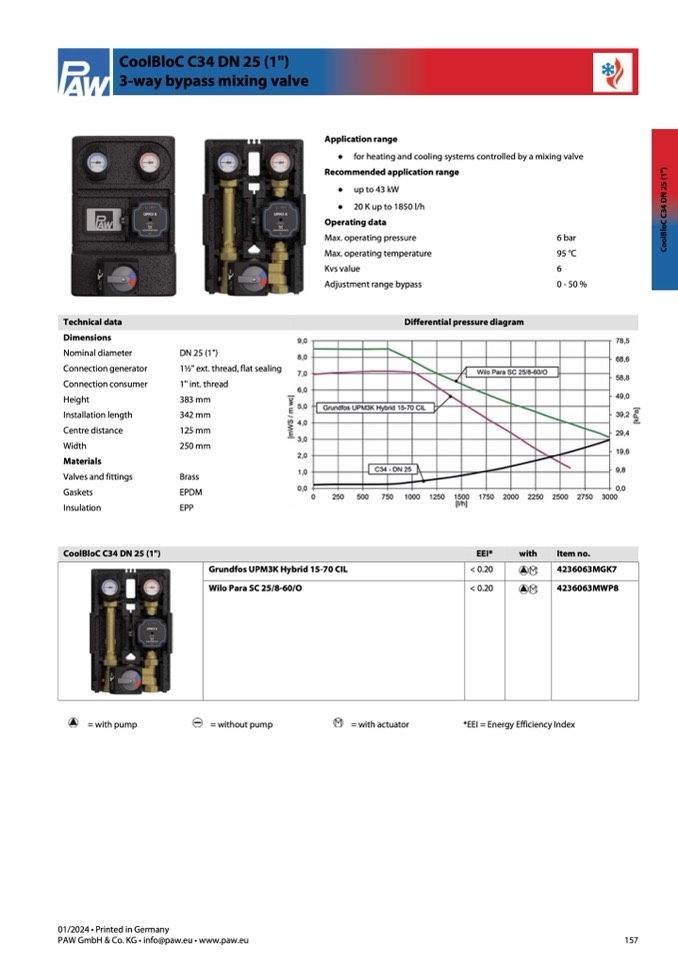

CoolBloC C34 DN 25 (1")

3-way bypass mixing valve

Application range

● for heating and cooling systems controlled by a mixing valve

Recommended application range

● up to 43 kW

● 20 K up to 1850 l/h

Operating data

Max. operating pressure

Max. operating temperature

Kvs value

Adjustment range bypass

6 bar

95 °C

6

0 - 50 %

Technical data

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

Materials

Valves and fittings

Gaskets

Insulation

Differential pressure diagram

DN 25 (1")

11⁄2" ext. thread, flat sealing

1" int. thread

383 mm

342 mm

125 mm

250 mm

Brass

EPDM

EPP

CoolBloC C34 DN 25 (1")

Wilo Para SC 25/8-60/O

< 0.20

4236063MWP8

Grundfos UPM3K Hybrid 15-70 CIL

EEI*

with

< 0.20

Item no.

4236063MGK7

= with pump

= without pump

= with actuator

*EEI = Energy Efficiency Index

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

157
