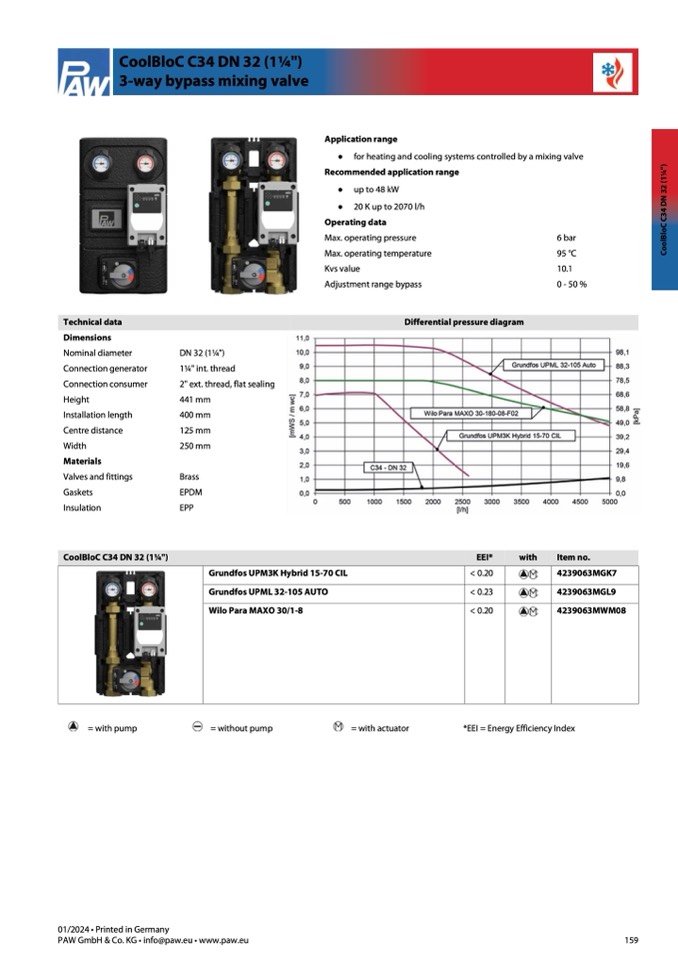

CoolBloC C34 DN 32 (11⁄4")

3-way bypass mixing valve

Application range

● for heating and cooling systems controlled by a mixing valve

Recommended application range

● up to 48 kW

● 20 K up to 2070 l/h

Operating data

Max. operating pressure

Max. operating temperature

Kvs value

Adjustment range bypass

6 bar

95 °C

10.1

0 - 50 %

Technical data

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

Materials

Valves and fittings

Gaskets

Insulation

Differential pressure diagram

DN 32 (1

1⁄4")

11⁄4" int. thread

2" ext. thread, flat sealing

441 mm

400 mm

125 mm

250 mm

Brass

EPDM

EPP

CoolBloC C34 DN 32 (1

1⁄4")

Wilo Para MAXO 30/1-8

< 0.20

4239063MWM08

EEI*

< 0.20

< 0.23

with

Item no.

4239063MGK7

4239063MGL9

= with pump

Grundfos UPM3K Hybrid 15-70 CIL

Grundfos UPML 32-105 AUTO

= without pump

= with actuator

*EEI = Energy Efficiency Index
