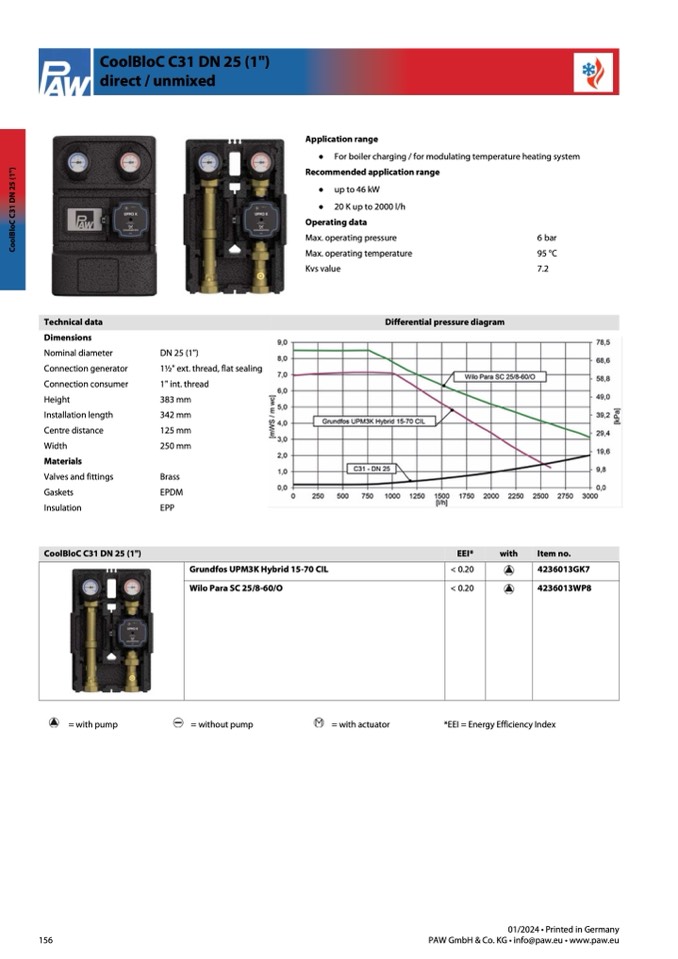

CoolBloC C31 DN 25 (1")

direct / unmixed

C

o

o

l

B

l

o

C

C

3

1

D

N

2

5

(

1

"

)

Technical data

CoolBloC C31 DN 25 (1")

Wilo Para SC 25/8-60/O

< 0.20

4236013WP8

Application range

● For boiler charging / for modulating temperature heating system

Recommended application range

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

Materials

Valves and fittings

Gaskets

Insulation

DN 25 (1")

1

1⁄2" ext. thread, flat sealing

1" int. thread

383 mm

342 mm

125 mm

250 mm

Brass

EPDM

EPP

● up to 46 kW

● 20 K up to 2000 l/h

Operating data

Max. operating pressure

Max. operating temperature

Kvs value

6 bar

95 °C

7.2

Differential pressure diagram

Grundfos UPM3K Hybrid 15-70 CIL

EEI*

with

< 0.20

Item no.

4236013GK7

156

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

= with pump

= without pump

= with actuator

*EEI = Energy Efficiency Index
