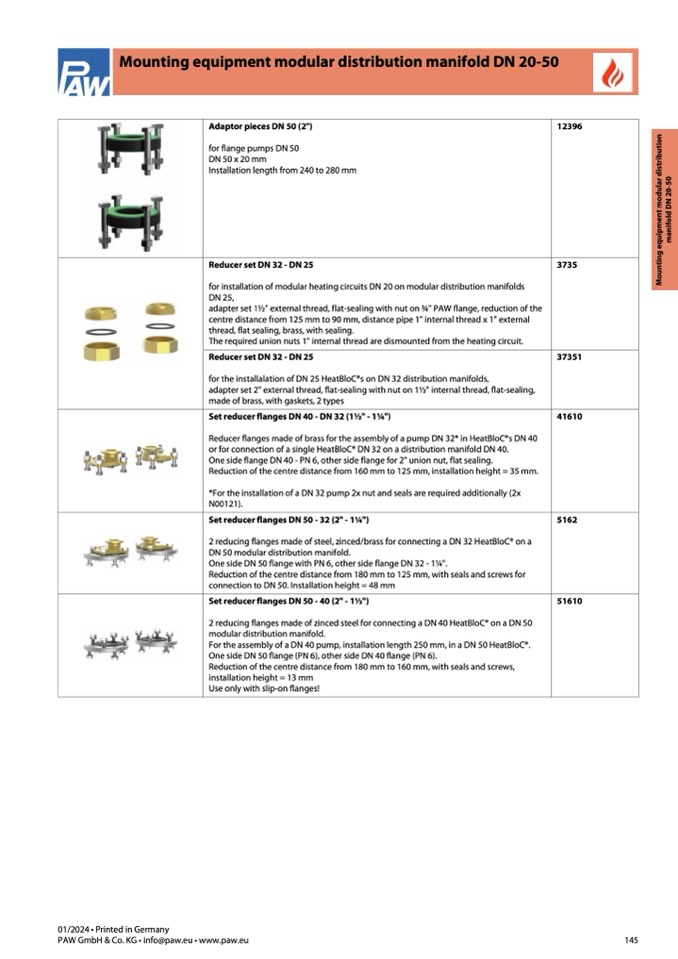

Mounting equipment modular distribution manifold DN 20-50

Adaptor pieces DN 50 (2")

for flange pumps DN 50

DN 50 x 20 mm

Installation length from 240 to 280 mm

12396

Reducer set DN 32 - DN 25

for installation of modular heating circuits DN 20 on modular distribution manifolds

DN 25,

adapter set 1

1⁄2" external thread, flat-sealing with nut on

3⁄4" PAW flange, reduction of the

centre distance from 125 mm to 90 mm, distance pipe 1" internal thread x 1" external

thread, flat sealing, brass, with sealing.

The required union nuts 1" internal thread are dismounted from the heating circuit.

3735

Reducer set DN 32 - DN 25

for the installalation of DN 25 HeatBloC®s on DN 32 distribution manifolds,

adapter set 2" external thread, flat-sealing with nut on 1

1⁄2" internal thread, flat-sealing,

made of brass, with gaskets, 2 types

37351

Set reducer flanges DN 40 - DN 32 (11⁄2" - 1

1⁄4")

Reducer flanges made of brass for the assembly of a pump DN 32* in HeatBloC®s DN 40

or for connection of a single HeatBloC® DN 32 on a distribution manifold DN 40.

One side flange DN 40 - PN 6, other side flange for 2" union nut, flat sealing.

Reduction of the centre distance from 160 mm to 125 mm, installation height = 35 mm.

*For the installation of a DN 32 pump 2x nut and seals are required additionally (2x

N00121).

41610

Set reducer flanges DN 50 - 32 (2" - 11⁄4")

2 reducing flanges made of steel, zinced/brass for connecting a DN 32 HeatBloC® on a

DN 50 modular distribution manifold.

One side DN 50 flange with PN 6, other side flange DN 32 - 11⁄4".

Reduction of the centre distance from 180 mm to 125 mm, with seals and screws for

connection to DN 50. Installation height = 48 mm

5162

Set reducer flanges DN 50 - 40 (2" - 11⁄2")

2 reducing flanges made of zinced steel for connecting a DN 40 HeatBloC® on a DN 50

modular distribution manifold.

For the assembly of a DN 40 pump, installation length 250 mm, in a DN 50 HeatBloC®.

One side DN 50 flange (PN 6), other side DN 40 flange (PN 6).

Reduction of the centre distance from 180 mm to 160 mm, with seals and screws,

installation height = 13 mm

Use only with slip-on flanges!

51610
