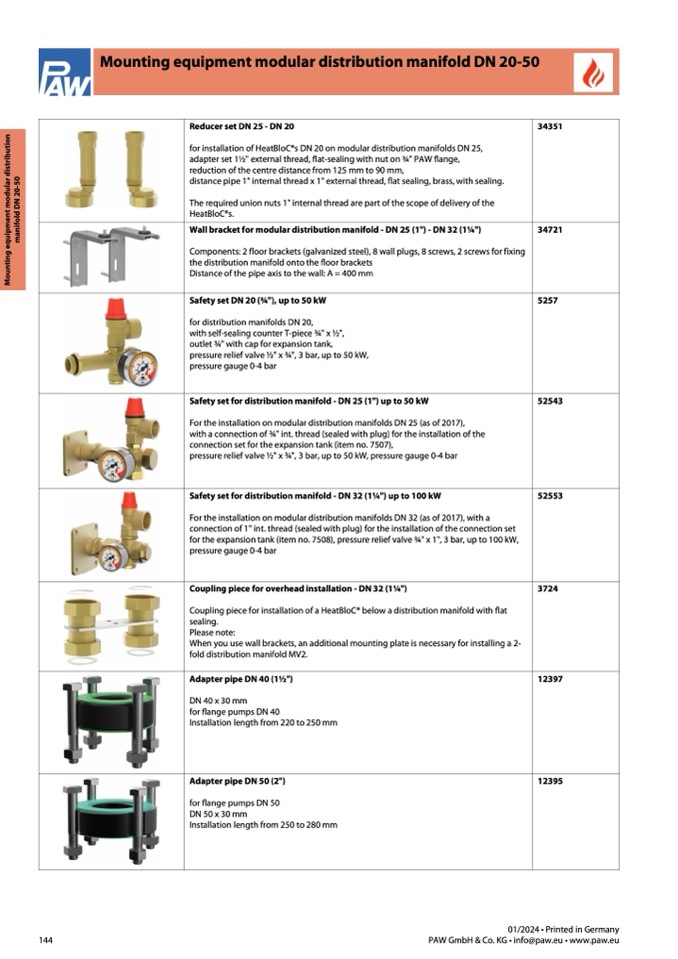

Mounting equipment modular distribution manifold DN 20-50

Reducer set DN 25 - DN 20

for installation of HeatBloC®s DN 20 on modular distribution manifolds DN 25,

adapter set 1

1⁄2" external thread, flat-sealing with nut on

3⁄4" PAW flange,

reduction of the centre distance from 125 mm to 90 mm,

distance pipe 1" internal thread x 1" external thread, flat sealing, brass, with sealing.

The required union nuts 1" internal thread are part of the scope of delivery of the

HeatBloC®s.

34351

Wall bracket for modular distribution manifold - DN 25 (1") - DN 32 (1

1⁄4")

Components: 2 floor brackets (galvanized steel), 8 wall plugs, 8 screws, 2 screws for fixing

the distribution manifold onto the floor brackets

Distance of the pipe axis to the wall: A = 400 mm

34721

Safety set DN 20 (

3⁄4"), up to 50 kW

for distribution manifolds DN 20,

with self-sealing counter T-piece

3⁄4" x 1⁄2",

outlet

3⁄4" with cap for expansion tank,

pressure relief valve

1⁄2" x

3⁄4", 3 bar, up to 50 kW,

pressure gauge 0-4 bar

5257

Safety set for distribution manifold - DN 25 (1") up to 50 kW

For the installation on modular distribution manifolds DN 25 (as of 2017),

with a connection of

3⁄4" int. thread (sealed with plug) for the installation of the

connection set for the expansion tank (item no. 7507),

pressure relief valve

1⁄2" x

3⁄4", 3 bar, up to 50 kW, pressure gauge 0-4 bar

52543

Safety set for distribution manifold - DN 32 (1

1⁄4") up to 100 kW

For the installation on modular distribution manifolds DN 32 (as of 2017), with a

connection of 1" int. thread (sealed with plug) for the installation of the connection set

for the expansion tank (item no. 7508), pressure relief valve 3⁄4" x 1", 3 bar, up to 100 kW,

pressure gauge 0-4 bar

52553

Coupling piece for overhead installation - DN 32 (1

1⁄4")

Coupling piece for installation of a HeatBloC® below a distribution manifold with flat

sealing.

Please note:

When you use wall brackets, an additional mounting plate is necessary for installing a 2-

fold distribution manifold MV2.

3724

Adapter pipe DN 40 (1

1⁄2")

DN 40 x 30 mm

for flange pumps DN 40

Installation length from 220 to 250 mm

12397

Adapter pipe DN 50 (2")

for flange pumps DN 50

DN 50 x 30 mm

Installation length from 250 to 280 mm

12395
