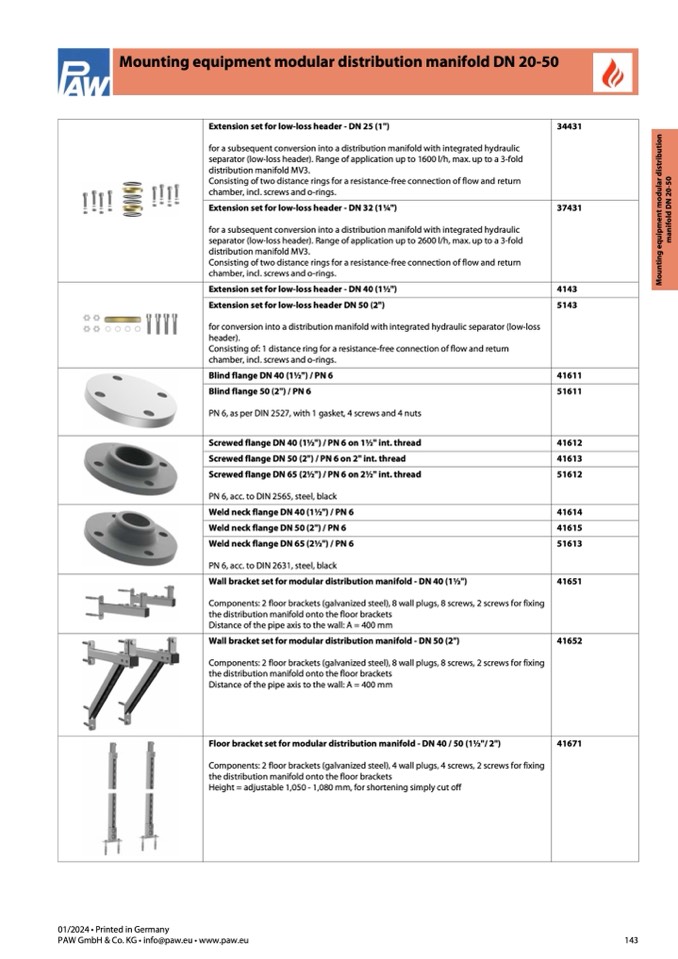

Mounting equipment modular distribution manifold DN 20-50

Extension set for low-loss header - DN 25 (1")

for a subsequent conversion into a distribution manifold with integrated hydraulic

separator (low-loss header). Range of application up to 1600 l/h, max. up to a 3-fold

distribution manifold MV3.

Consisting of two distance rings for a resistance-free connection of flow and return

chamber, incl. screws and o-rings.

34431

Extension set for low-loss header - DN 32 (1

1⁄4")

for a subsequent conversion into a distribution manifold with integrated hydraulic

separator (low-loss header). Range of application up to 2600 l/h, max. up to a 3-fold

distribution manifold MV3.

Consisting of two distance rings for a resistance-free connection of flow and return

chamber, incl. screws and o-rings.

37431

Extension set for low-loss header - DN 40 (1

1⁄2")

Blind flange DN 40 (1

1⁄2") / PN 6

Screwed flange DN 40 (11⁄2") / PN 6 on 1

1⁄2" int. thread

Screwed flange DN 50 (2") / PN 6 on 2" int. thread

Weld neck flange DN 40 (1

1⁄2") / PN 6

Weld neck flange DN 50 (2") / PN 6

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

4143

41611

41612

41613

41614

41615

Extension set for low-loss header DN 50 (2")

for conversion into a distribution manifold with integrated hydraulic separator (low-loss

header).

Consisting of: 1 distance ring for a resistance-free connection of flow and return

chamber, incl. screws and o-rings.

5143

Blind flange 50 (2") / PN 6

PN 6, as per DIN 2527, with 1 gasket, 4 screws and 4 nuts

51611

Screwed flange DN 65 (21⁄2") / PN 6 on 2

1⁄2" int. thread

PN 6, acc. to DIN 2565, steel, black

51612

Weld neck flange DN 65 (2

1⁄2") / PN 6

PN 6, acc. to DIN 2631, steel, black

51613

Wall bracket set for modular distribution manifold - DN 40 (1

1⁄2")

Components: 2 floor brackets (galvanized steel), 8 wall plugs, 8 screws, 2 screws for fixing

the distribution manifold onto the floor brackets

Distance of the pipe axis to the wall: A = 400 mm

41651

Wall bracket set for modular distribution manifold - DN 50 (2")

Components: 2 floor brackets (galvanized steel), 8 wall plugs, 8 screws, 2 screws for fixing

the distribution manifold onto the floor brackets

Distance of the pipe axis to the wall: A = 400 mm

41652

Floor bracket set for modular distribution manifold - DN 40 / 50 (11⁄2"/ 2")

Components: 2 floor brackets (galvanized steel), 4 wall plugs, 4 screws, 2 screws for fixing

the distribution manifold onto the floor brackets

Height = adjustable 1,050 - 1,080 mm, for shortening simply cut off

41671
