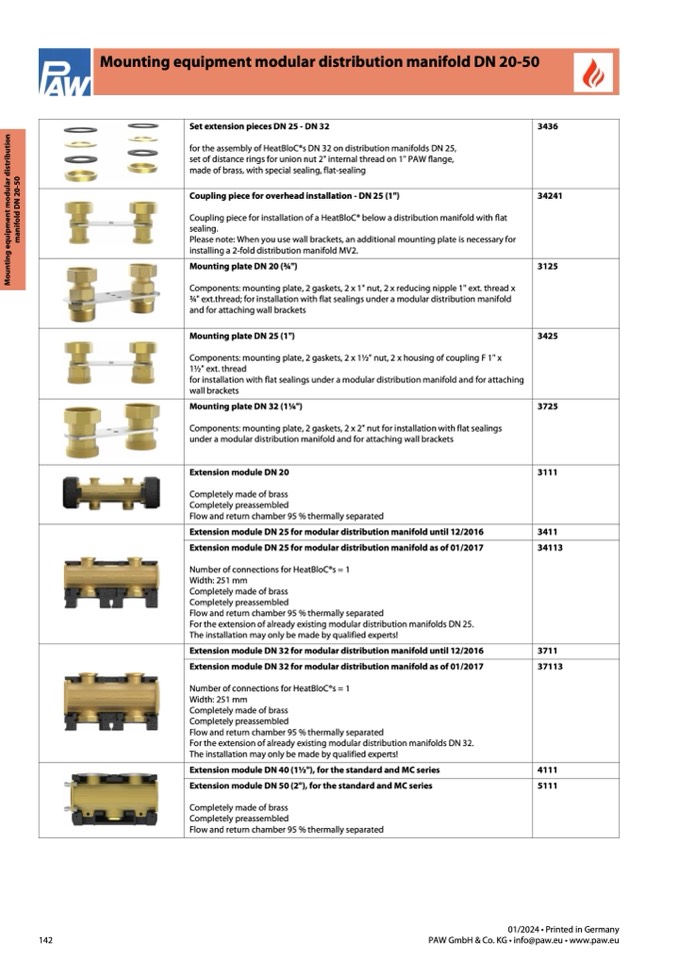

Mounting equipment modular distribution manifold DN 20-50

Set extension pieces DN 25 - DN 32

for the assembly of HeatBloC®s DN 32 on distribution manifolds DN 25,

set of distance rings for union nut 2" internal thread on 1" PAW flange,

made of brass, with special sealing, flat-sealing

M

o

u

n

t

i

n

g

e

q

u

i

p

m

e

n

t

m

o

d

u

l

a

r

d

i

s

t

r

i

b

u

t

i

o

n

m

a

n

i

f

o

l

d

D

N

2

0

-

5

0

Mounting plate DN 25 (1")

Components: mounting plate, 2 gaskets, 2 x 1

1⁄2" nut, 2 x housing of coupling F 1" x

1

1⁄2" ext. thread

for installation with flat sealings under a modular distribution manifold and for attaching

wall brackets

3436

Coupling piece for overhead installation - DN 25 (1")

Coupling piece for installation of a HeatBloC® below a distribution manifold with flat

sealing.

Please note: When you use wall brackets, an additional mounting plate is necessary for

installing a 2-fold distribution manifold MV2.

34241

Mounting plate DN 20 (

3⁄4")

Components: mounting plate, 2 gaskets, 2 x 1" nut, 2 x reducing nipple 1" ext. thread x

3⁄4" ext.thread; for installation with flat sealings under a modular distribution manifold

and for attaching wall brackets

3125

3425

Mounting plate DN 32 (1

1⁄4")

Components: mounting plate, 2 gaskets, 2 x 2" nut for installation with flat sealings

under a modular distribution manifold and for attaching wall brackets

3725

Extension module DN 20

Completely made of brass

Completely preassembled

Flow and return chamber 95 % thermally separated

3111

Extension module DN 25 for modular distribution manifold as of 01/2017

Number of connections for HeatBloC®s = 1

Width: 251 mm

Completely made of brass

Completely preassembled

Flow and return chamber 95 % thermally separated

For the extension of already existing modular distribution manifolds DN 25.

The installation may only be made by qualified experts!

34113

Extension module DN 32 for modular distribution manifold as of 01/2017

Number of connections for HeatBloC®s = 1

Width: 251 mm

Completely made of brass

Completely preassembled

Flow and return chamber 95 % thermally separated

For the extension of already existing modular distribution manifolds DN 32.

The installation may only be made by qualified experts!

37113

Extension module DN 50 (2"), for the standard and MC series

Completely made of brass

Completely preassembled

Flow and return chamber 95 % thermally separated

5111

Extension module DN 25 for modular distribution manifold until 12/2016

3411

Extension module DN 32 for modular distribution manifold until 12/2016

3711

Extension module DN 40 (1

1⁄2"), for the standard and MC series

4111

01/2024 • Printed in Germany
