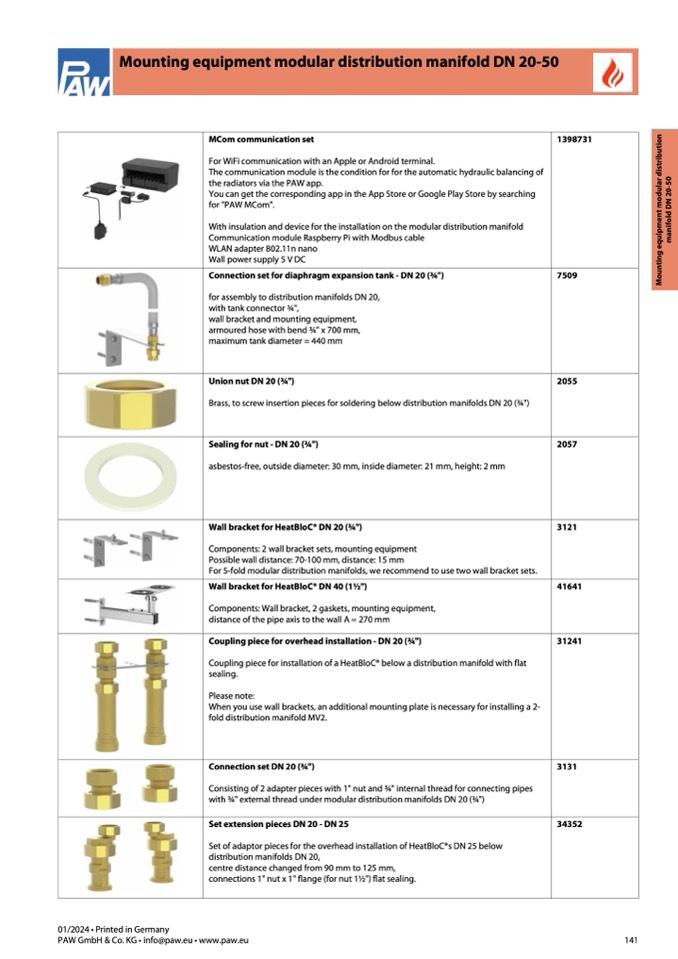

Mounting equipment modular distribution manifold DN 20-50

MCom communication set

For WiFi communication with an Apple or Android terminal.

The communication module is the condition for for the automatic hydraulic balancing of

the radiators via the PAW app.

You can get the corresponding app in the App Store or Google Play Store by searching

for "PAW MCom".

With insulation and device for the installation on the modular distribution manifold

Communication module Raspberry Pi with Modbus cable

WLAN adapter 802.11n nano

Wall power supply 5 V DC

1398731

Connection set for diaphragm expansion tank - DN 20 (

3⁄4")

for assembly to distribution manifolds DN 20,

with tank connector

3⁄4",

wall bracket and mounting equipment,

armoured hose with bend

3⁄4" x 700 mm,

maximum tank diameter = 440 mm

7509

Union nut DN 20 (

3⁄4")

Brass, to screw insertion pieces for soldering below distribution manifolds DN 20 (

3⁄4")

2055

Sealing for nut - DN 20 (

3⁄4")

asbestos-free, outside diameter: 30 mm, inside diameter: 21 mm, height: 2 mm

2057

Wall bracket for HeatBloC® DN 20 (

3⁄4")

Components: 2 wall bracket sets, mounting equipment

Possible wall distance: 70-100 mm, distance: 15 mm

For 5-fold modular distribution manifolds, we recommend to use two wall bracket sets.

3121

Wall bracket for HeatBloC® DN 40 (1

1⁄2")

Components: Wall bracket, 2 gaskets, mounting equipment,

distance of the pipe axis to the wall A = 270 mm

41641

Coupling piece for overhead installation - DN 20 (

3⁄4")

Coupling piece for installation of a HeatBloC® below a distribution manifold with flat

sealing.

Please note:

When you use wall brackets, an additional mounting plate is necessary for installing a 2-

fold distribution manifold MV2.

31241

Connection set DN 20 (3⁄4")

Consisting of 2 adapter pieces with 1" nut and

3⁄4" internal thread for connecting pipes

with

3⁄4" external thread under modular distribution manifolds DN 20 (

3⁄4")

3131

Set extension pieces DN 20 - DN 25

Set of adaptor pieces for the overhead installation of HeatBloC®s DN 25 below

distribution manifolds DN 20,

centre distance changed from 90 mm to 125 mm,

connections 1" nut x 1" flange (for nut 11⁄2") flat sealing.

34352
