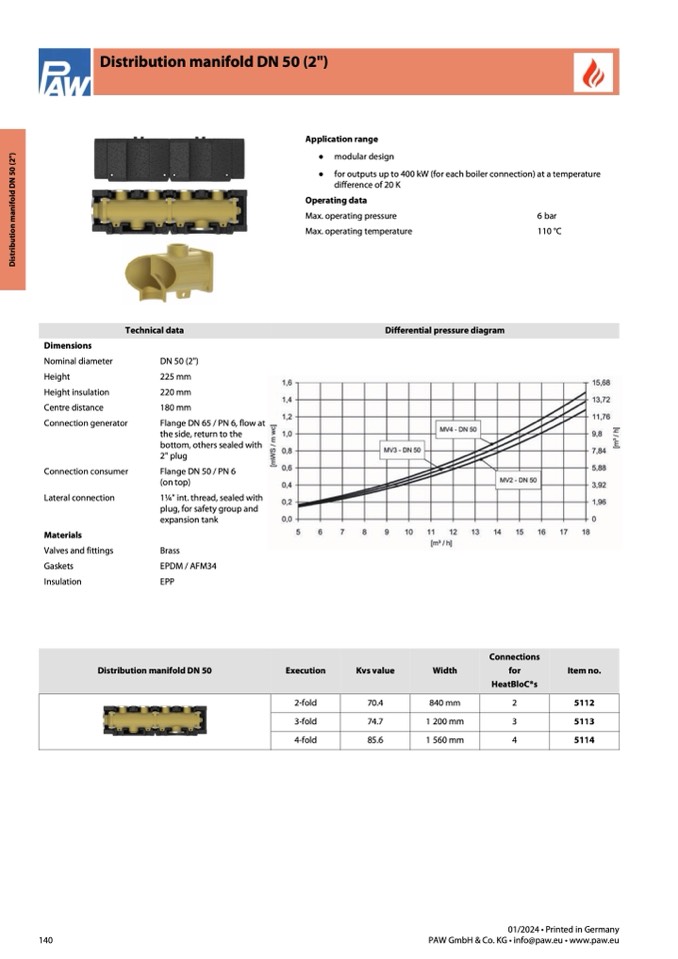

Distribution manifold DN 50 (2")

D

i

s

t

r

i

b

u

t

i

o

n

m

a

n

i

f

o

l

d

D

N

5

0

(

2

"

)

Technical data

Distribution manifold DN 50

Connections

for

HeatBloC®s

Dimensions

Nominal diameter

Height

Height insulation

Centre distance

Connection generator

Connection consumer

Lateral connection

Materials

Valves and fittings

Gaskets

Insulation

DN 50 (2")

225 mm

220 mm

180 mm

Flange DN 65 / PN 6, flow at

the side, return to the

bottom, others sealed with

2" plug

Flange DN 50 / PN 6

(on top)

1

1⁄4" int. thread, sealed with

plug, for safety group and

expansion tank

Brass

EPDM / AFM34

EPP

Application range

● modular design

● for outputs up to 400 kW (for each boiler connection) at a temperature

difference of 20 K

Operating data

Max. operating pressure

Max. operating temperature

6 bar

110 °C

Differential pressure diagram

Execution

2-fold

3-fold

4-fold

Kvs value

70.4

74.7

85.6

Width

840 mm

2

1 200 mm

3

1 560 mm

4

Item no.

5112

5113

5114

140
