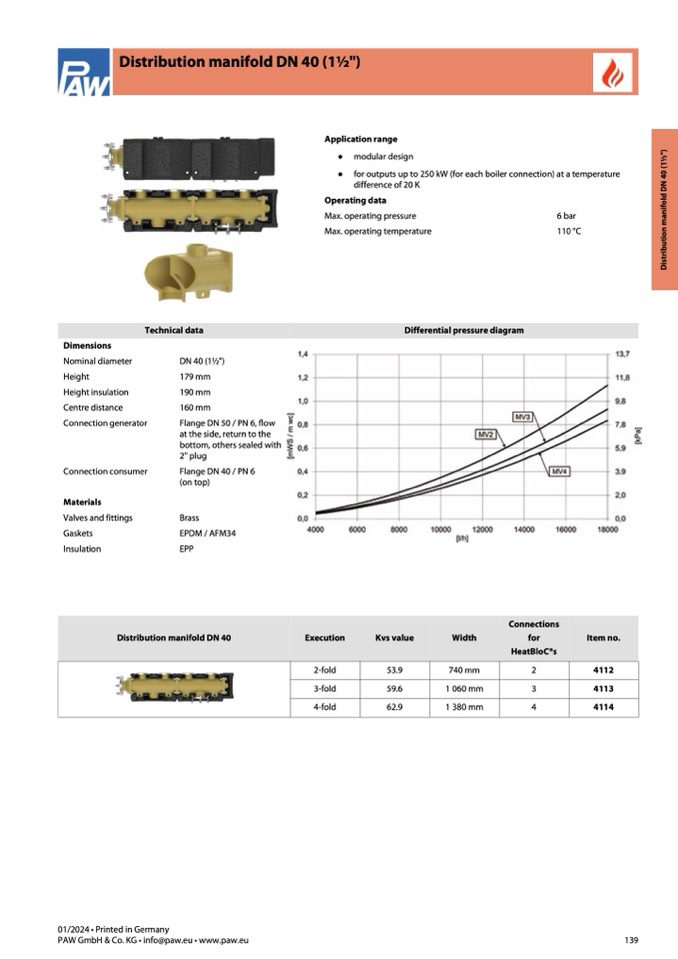

Distribution manifold DN 40 (1

1⁄2")

Application range

● modular design

● for outputs up to 250 kW (for each boiler connection) at a temperature

difference of 20 K

Operating data

Max. operating pressure

Max. operating temperature

6 bar

110 °C

Dimensions

Nominal diameter

Height

Height insulation

Centre distance

Connection generator

Connection consumer

Materials

Valves and fittings

Gaskets

Insulation

DN 40 (1

1⁄2")

179 mm

190 mm

160 mm

Flange DN 50 / PN 6, flow

at the side, return to the

bottom, others sealed with

2" plug

Flange DN 40 / PN 6

(on top)

Brass

EPDM / AFM34

EPP

Technical data

Differential pressure diagram

Distribution manifold DN 40

Execution

2-fold

3-fold

4-fold

Kvs value

53.9

59.6

62.9

Width

740 mm

2

1 060 mm

3

1 380 mm

4

Item no.

4112

4113

4114

Connections

for

HeatBloC®s
