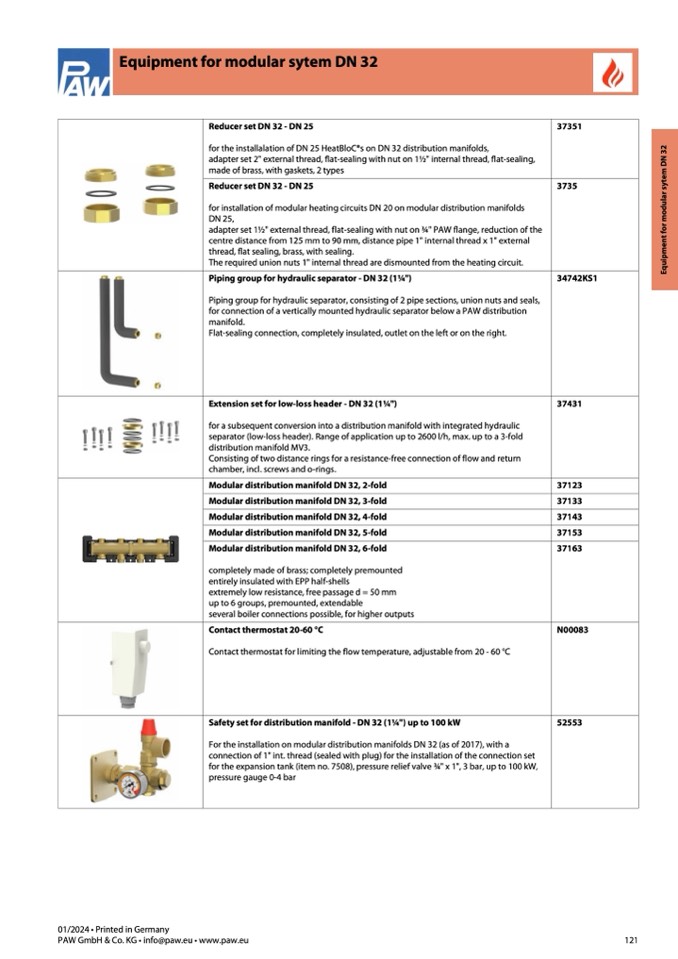

Paw - 01/2024

Equipment for modular sytem DN 32

Reducer set DN 32 - DN 25

for the installalation of DN 25 HeatBloC®s on DN 32 distribution manifolds,

adapter set 2" external thread, flat-sealing with nut on 1

1⁄2" internal thread, flat-sealing,

made of brass, with gaskets, 2 types

Reducer set DN 32 - DN 25

for installation of modular heating circuits DN 20 on modular distribution manifolds

DN 25,

adapter set 1

1⁄2" external thread, flat-sealing with nut on

3⁄4" PAW flange, reduction of the

centre distance from 125 mm to 90 mm, distance pipe 1" internal thread x 1" external

thread, flat sealing, brass, with sealing.

The required union nuts 1" internal thread are dismounted from the heating circuit.

37351

3735

Piping group for hydraulic separator - DN 32 (1

1⁄4")

Piping group for hydraulic separator, consisting of 2 pipe sections, union nuts and seals,

for connection of a vertically mounted hydraulic separator below a PAW distribution

manifold.

Flat-sealing connection, completely insulated, outlet on the left or on the right.

34742KS1

Extension set for low-loss header - DN 32 (1

1⁄4")

for a subsequent conversion into a distribution manifold with integrated hydraulic

separator (low-loss header). Range of application up to 2600 l/h, max. up to a 3-fold

distribution manifold MV3.

Consisting of two distance rings for a resistance-free connection of flow and return

chamber, incl. screws and o-rings.

37431

Modular distribution manifold DN 32, 6-fold

completely made of brass; completely premounted

entirely insulated with EPP half-shells

extremely low resistance, free passage d = 50 mm

up to 6 groups, premounted, extendable

several boiler connections possible, for higher outputs

Contact thermostat 20-60 °C

Contact thermostat for limiting the flow temperature, adjustable from 20 - 60 °C

37163

N00083

Safety set for distribution manifold - DN 32 (1

1⁄4") up to 100 kW

For the installation on modular distribution manifolds DN 32 (as of 2017), with a

connection of 1" int. thread (sealed with plug) for the installation of the connection set

for the expansion tank (item no. 7508), pressure relief valve 3⁄4" x 1", 3 bar, up to 100 kW,

pressure gauge 0-4 bar

52553

Modular distribution manifold DN 32, 2-fold

Modular distribution manifold DN 32, 3-fold

Modular distribution manifold DN 32, 4-fold

Modular distribution manifold DN 32, 5-fold

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

37123

37133

37143

37153

121
